Premium Graphite Electrode Supplier · Established 2013 · Sino-Japanese Technology

Superior Graphite Electrodes For European Industry

Ultra-high power graphite electrodes manufactured to international standards, purpose-built for the demanding requirements of European steel, metallurgy, and chemical sectors.

🇪🇺 Europe

🌎 North America

🌎 South America

Enquire About Supply View Product Range

307

Acres of Production Area

30,000t

Annual Production Capacity

ISO

9001 Quality Management

JV

Sino-Japanese Joint Venture

Profile History Certifications Product Specifications Application Site Our Facility

2013

"Where Chinese precision meets Japanese engineering excellence."

Shandong Asahi Graphite New Material Technology Co., Ltd. was founded in 2013 in the Linyi County Economic Development Zone, Dezhou City, Shandong Province, China. With a total investment of approximately ¥466.5 million and a site covering 307 acres, we are one of Asia's most advanced graphite electrode manufacturers.

In 2019, we entered a joint venture with Sojitz Ject Corporation, a subsidiary of the renowned Japanese Sojitz Group — making us a Sino-Japanese enterprise combining best-in-class Chinese manufacturing with Japanese quality systems and global distribution expertise.

History · Our Journey

Milestones in Our Story

Hover any milestone to see the moment captured.

Today

2021-11-16

Certified by international systems for quality, environment, and occupational health and safety.

2021-09-14

Asahi exports its first batch of finished products.

2020-11-20

Machine Shop Equipment Installation.

2020-06-20

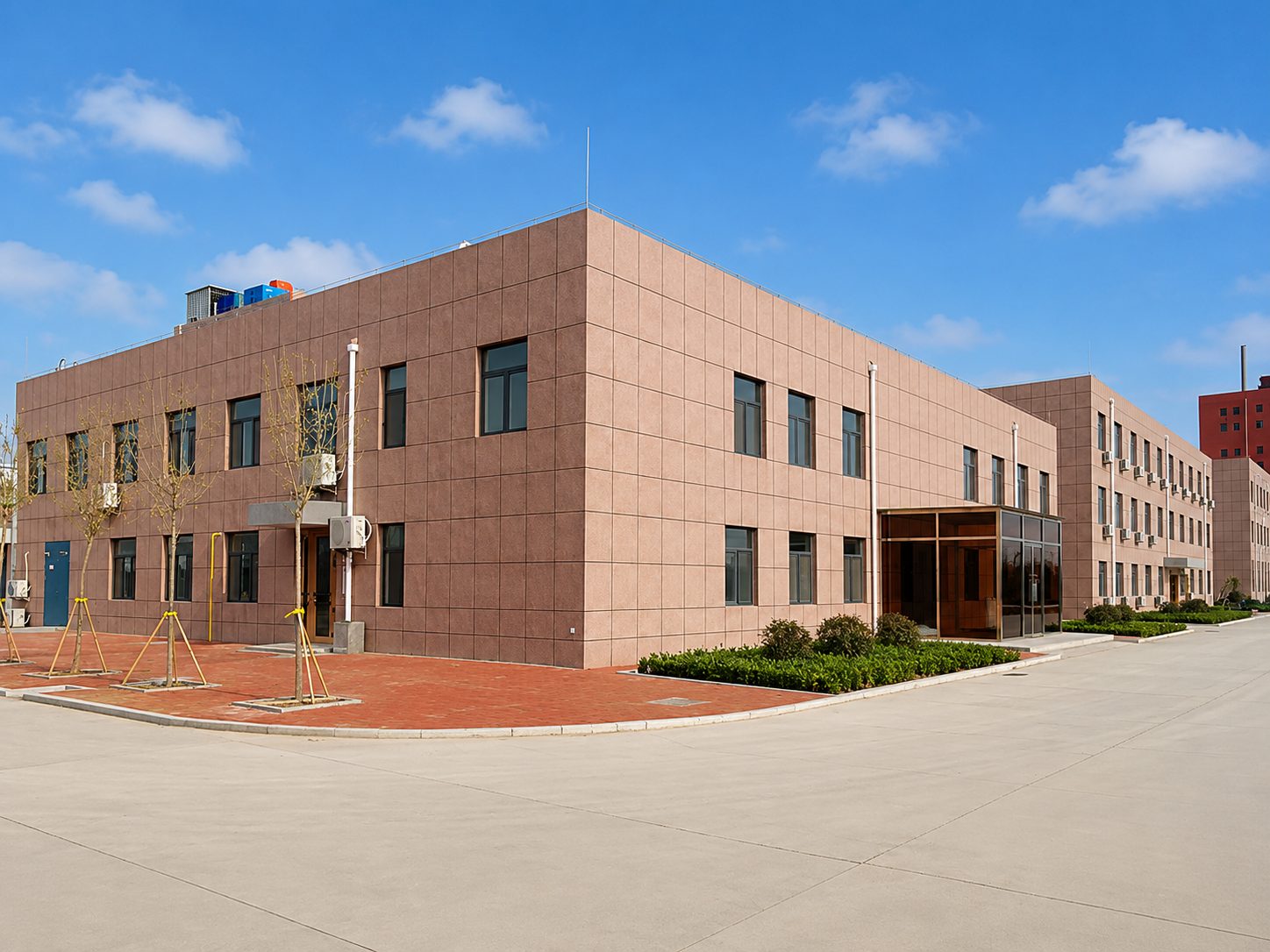

The office building, dormitory, cafeteria and bathhouse, mechanical repair workshop, and R&D center have been completed.

2019-04-03

Machining Workshop Construction.

2019-01-12

Joint Venture Signing Ceremony between China and Foreign Countries.

2018-06-18

The pressed-steel workshop has been completed, and equipment is being installed.

2013-06-23

Press-forming, single-stage firing, impregnation, and second-stage firing — groundbreaking underway.

2013-06-18

Groundbreaking Ceremony.

2013-01-16

Company established.

Start

Certificate Documents

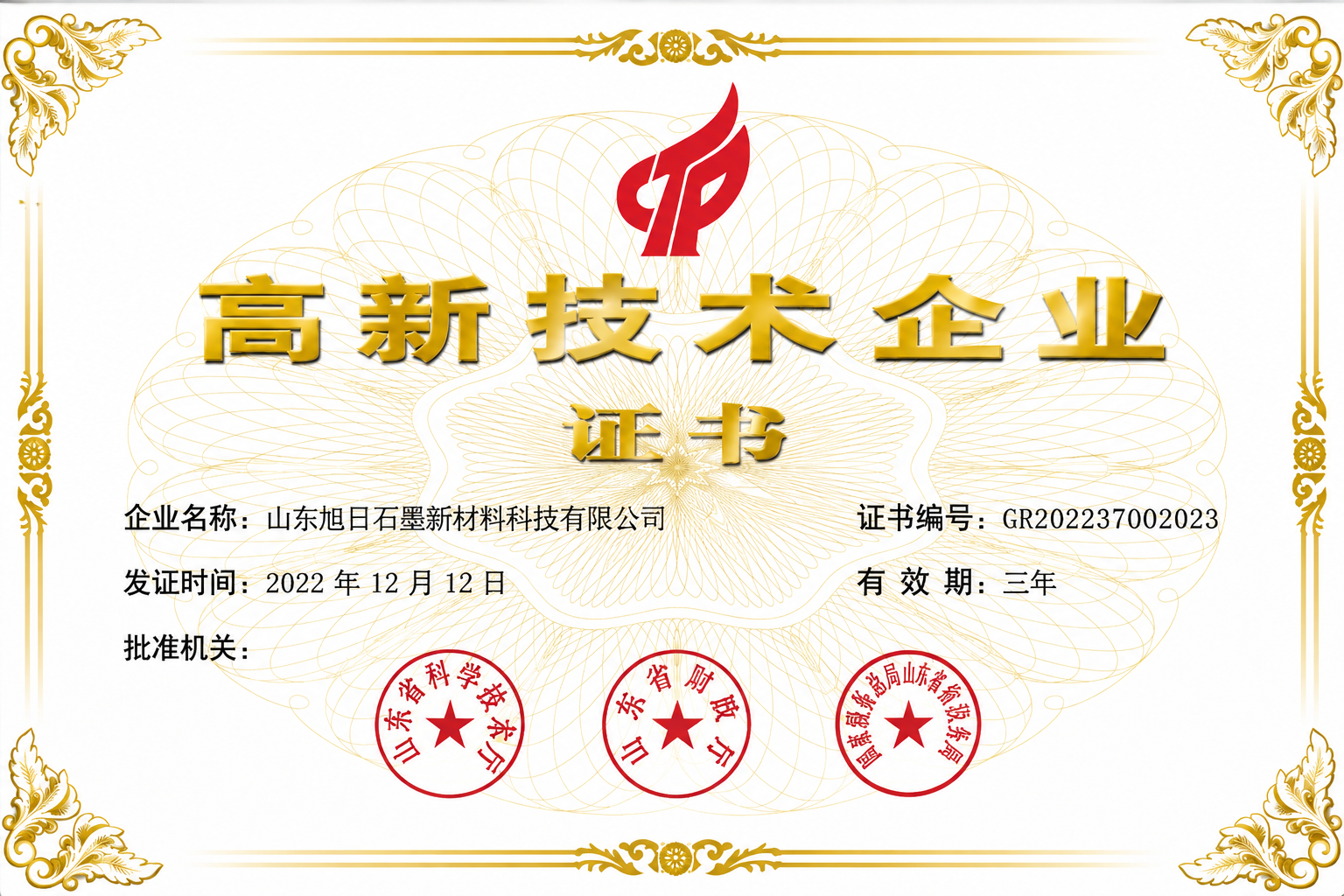

High-Tech Enterprise Certificate (No. GR202237002023)

High-Tech Enterprise Certificate · 2022

Innovative Small & Medium Enterprise — Shandong Department of Industry and Information Technology

Innovative SME · Shandong Province · 2023–2025

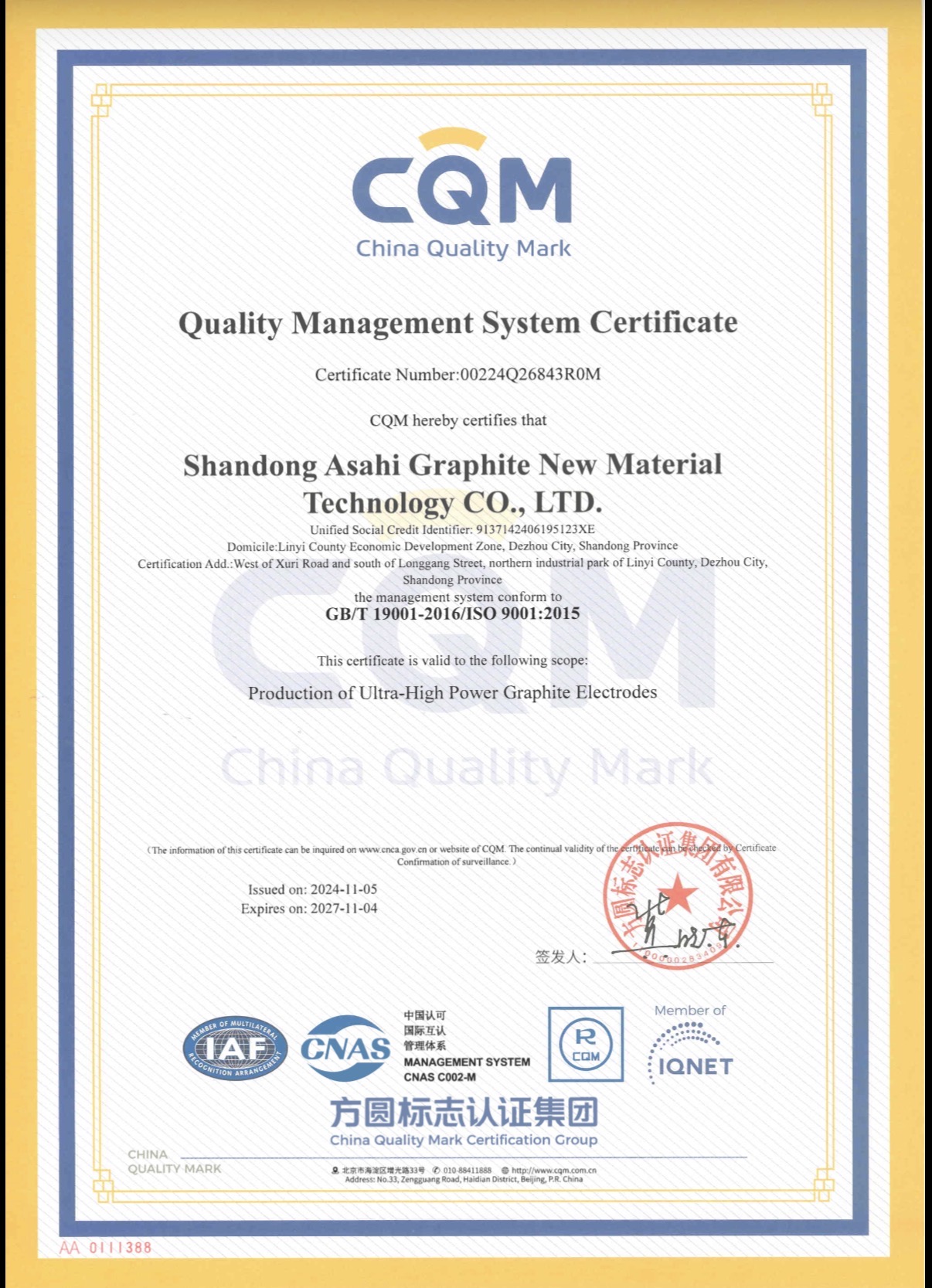

CQM Quality Management System Certificate — ISO 9001:2015 (Certificate No. 00224Q26843R0M)

ISO 9001:2015 Quality Management · CQM · 2024

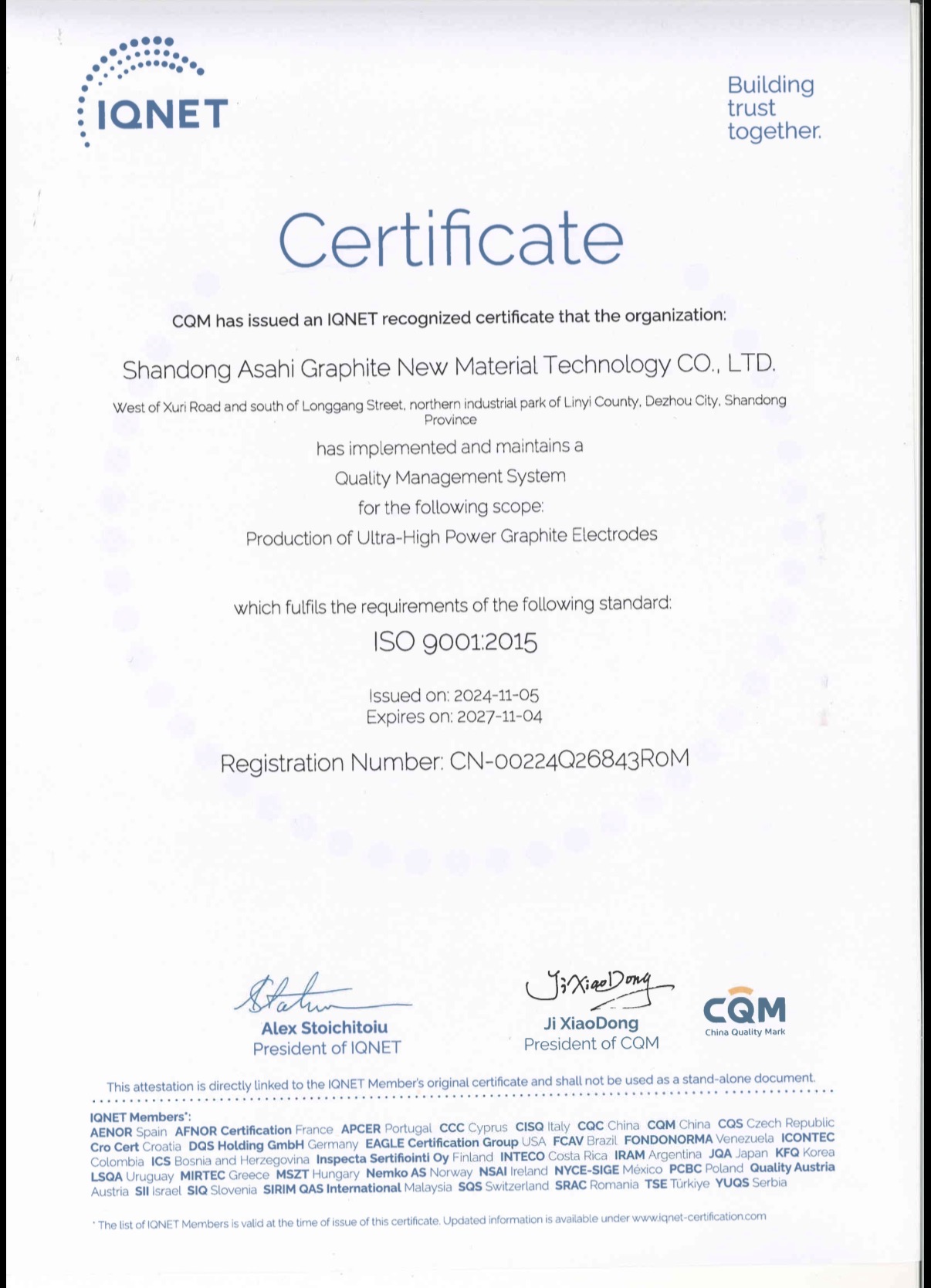

IQNET Certificate — ISO 9001:2015 (Registration No. CN-00224Q26843R0M)

ISO 9001:2015 · IQNET Certified · 2024

Standard Dimensions & Weight

Reference specifications for graphite electrodes. All tolerances ship with a Material Test Report (MTR) and dimensional inspection record.

Nominal Diameter	Diameter Range (mm)		Length Range (mm)			Standard Weight (kg)
Nominal Diameter	Maximum	Minimum	Nominal	Maximum	Minimum	Standard Weight (kg)
375 mm	78	73	1000	1050	925	7
4100 mm	103	98	1200	1250	1100	16
5 1/8130 mm	132	129	1500	1550	1400	33
6150 mm	154	149	1500	1550	1400	45
7175 mm	179	174	1500	1550	1400	59
8200 mm	205	200	1500	1550	1400	76
8200 mm	205	200	1800	1875	1700	100
9225 mm	230	225	1500	1550	1400	101
10250 mm	256	251	1500	1550	1400	120
10250 mm	256	251	1800	1875	1700	155
12300 mm	307	302	1500	1550	1400	185
12300 mm	307	302	1800	1875	1700	230
14350 mm	357	352	1500	1550	1400	253
			1800	1875	1700	305
			2400	2475	2275	406
16400 mm	409	403	1500	1550	1400	334
16400 mm	409	403	1800	1875	1700	395
18450 mm	460	454	1800	1875	1700	505
			2100	2175	1975	585
			2400	2475	2275	665
20500 mm	511	505	1800	1875	1700	617
			2100	2175	1975	717
			2400	2475	2275	824
22550 mm	562	556	2100	2175	1975	873
22550 mm	562	556	2400	2475	2275	995
24600 mm	613	607	2400	2475	2275	1190
24600 mm	613	607	2700	2850	2550	1350
26650 mm	663	657	2700	2850	2550	1580
28700 mm	714	708	2700	2850	2550	1840

Strategy & Innovation

The carbon industry is an important new-energy raw-material sector in China, and carbon products are widely used in numerous fields such as metallurgy, chemical engineering, aviation, aerospace, and nuclear energy. Considering the company's long-term development, ASAHI Technology has adopted a strategy driven by technological innovation to promote sustainable corporate growth. The company has invested over 20 million yuan to introduce advanced laboratory equipment and establish an independent R&D center, dedicated to producing China's highest-quality ultra-high-power graphite electrodes. ASAHI Technology aims to catch up with and surpass the standards of developed countries such as Europe, the United States, and Japan, thereby building a truly national Chinese brand. At the same time, the company is actively engaged in the R&D of cutting-edge carbon products, including fullerene carbon, nano-carbon, and graphene. By fully leveraging its technological strengths, ASAHI Technology is creating broader market prospects and driving the overall development of China's carbon industry.

Technical References

01

Electrodynamic Torque Table Connection

Recommended torque values for connecting graphite electrodes through threaded pins (nipples). Following these values keeps joints tight under thermal cycling and minimizes the risk of electrode breakage during EAF operation.

Electrode diameter (mm)	150	200	250	300	350	400	450	500	550	600
Torque value (kg·m)	15	22	45	60	100	200	250	320	380	430

Always use a calibrated torque wrench and an electrode lifting bail. Apply joint compound only to the pin's leading thread.

02

Detailed Packaging of Electrodes

Our electrodes are packaged on wooden pallets and secured with steel straps. The threads and end faces are protected by protective covers to minimize the risk of damage to these areas. The attached table shows the number of electrodes packed per pallet for each specification.

When using container transport, each 20-foot container can carry electrodes of various specifications, along with the corresponding number of connectors as shown below:

Electrode size (in)		Packaging box L×W×H (in)	Boxes per container	Electrodes per box	Electrodes per container	Net weight (t)
Ø	Length	Packaging box L×W×H (in)	Boxes per container	Electrodes per box	Electrodes per container	Net weight (t)
12	72	81.1 × 38.1 × 14.5	30	3	90	20
14	72	81.5 × 44 × 18.11	21	3	63	20
14	84	98.4 × 44 × 18.11	16	3	48	18
14	96	106.3 × 44 × 18.11	16	3	48	20
16	72	83.6 × 50.2 × 20.3	16	3	48	20
16	72	83.6 × 34.2 × 20.3	24	2	48	20
16	84	96.4 × 50.2 × 20.3	8	3	40	18
16	84	96.4 × 34.2 × 20.3	8	2	40	18
16	96	106.3 × 50.2 × 20.3	8	3	38	20
16	96	106.3 × 34.2 × 20.3	7	2	38	20
18	72	86.6 × 37.8 × 22.2	20	2	40	20
18	84	98.4 × 37.8 × 22.2	16	2	32	18
18	96	108.3 × 37.8 × 22.2	14	2	28	20
20	72	86.6 × 42.5 × 24.2	15	2	30	20
20	84	98.4 × 42.5 × 24.2	12	2	24	18
20	96	108.3 × 42.5 × 24.2	12	2	24	20
22	84	98.4 × 46 × 25.6	10	2	20	18
22	96	108.3 × 46 × 25.6	10	2	20	20
22	110	122 × 46 × 25.6	6	2	12	16
24	84	98.4 × 50.2 × 28.5	6	2	12	14
24	96	108.3 × 50.2 × 28.5	6	2	12	16
24	110	122 × 50.2 × 28.5	3	2	6	8

03

Current Load & Current Density

Permissible current load (A) and current density (A/cm²) across our three grades. Use the lower end of each range as a guide for continuous high-load operation; "~" indicates the diameter is not produced in that grade.

Nominal Diameter (mm)	High Power · HP		Near-Ultra-High Power · SHP		Ultra-High Power · UHP
Nominal Diameter (mm)	Current load (A)	Current density (A/cm²)	Current load (A)	Current density (A/cm²)	Current load (A)	Current density (A/cm²)
75	1,000 – 1,400	22 – 31	~	~	~	~
100	1,500 – 2,400	19 – 30	~	~	~	~
130	2,200 – 3,400	17 – 26	~	~	~	~
150	3,000 – 4,500	16 – 25	~	~	~	~
200	5,000 – 5,500	18 – 25	~	~	~	~
250	8,000 – 13,000	18 – 25	~	~	9,200 – 15,100	21 – 30
300	13,000 – 17,400	17 – 24	~	~	13,000 – 22,000	20 – 30
350	17,400 – 24,000	17 – 24	19,000 – 28,000	17 – 30	20,000 – 28,000	20 – 30
400	21,000 – 32,000	16 – 24	23,000 – 35,000	17 – 25	25,000 – 40,000	19 – 30
450	25,000 – 40,000	15 – 24	30,000 – 42,000	17 – 25	32,000 – 45,000	19 – 27
500	30,000 – 48,000	15 – 24	35,000 – 50,000	17 – 25	38,000 – 55,000	18 – 27
550	37,000 – 57,000	15 – 23	44,000 – 58,000	18 – 24	50,000 – 60,000	18 – 24
600	44,000 – 67,000	15 – 23	52,000 – 67,000	18 – 24	55,000 – 72,000	18 – 24
650	~	~	~	~	55,000 – 75,000	18 – 24
700	~	~	~	~	62,000 – 95,000	18 – 24

04

Standard Dimensions for Fittings & Threads

Standard pin (nipple) connector dimensions across the 3 TPI series · pitch 8.47 mm and 4 TPI series · pitch 6.35 mm. Tolerances follow ISO 13765 / IEC 60239; custom thread profiles available on request.

	Nominal name	Connectormm		Connector holemm			Effective diameterB · mm	International Nonproprietary Name
	Nominal name	AMax diameter	LMax length	DCaliber	SDepth	TThread length	Effective diameterB · mm	Connector	Diameterin	Lengthin
3 TPIPitch 8.47 mm	9T3	139.70	203.20	131.27	107.60	103.60	135.49	139T3	5.50	8.00
	10T3	155.57	220.00	147.14	116.00	112.00	151.36	155T3	6.125	8.66
	12T3	177.16	270.90	168.73	141.50	137.50	172.95	177T3	6.975	10.66
	14T3	215.90	304.80	207.47	158.40	154.40	211.69	215T3	8.50	12.00
	14T3L	215.90	355.60	207.47	183.80	179.80	211.69	215T3L	8.50	14.00
	16T3	241.30	338.70	232.87	175.30	171.30	237.09	241T3	9.50	13.33
	16T3L	241.30	355.60	232.87	183.80	179.80	237.09	241T3L	9.50	14.00
	18T3	273.05	355.60	264.62	183.80	179.80	268.84	273T3	10.75	14.00
	18T3L	273.05	457.20	264.62	236.60	232.60	268.84	273T3L	10.75	18.00
	20T3	298.45	372.60	290.02	192.20	188.20	294.24	294T3	11.75	14.66
4 TPIPitch 6.35 mm	3T4	46.04	76.20	39.72	44.10	40.10	42.88	45T4	1.81	3.00
	4T4	69.85	101.60	63.53	56.80	52.80	66.69	69T4	2.75	4.00
	5 1/8 T4	79.38	127.00	73.06	69.50	65.50	76.22	79T4	3.125	5.00
	6T4	92.08	139.70	85.76	75.90	71.90	88.92	92T4	3.625	5.50
	7T4	107.95	165.10	101.63	88.60	84.60	104.79	107T4	4.25	6.50
	8T4	122.24	177.80	115.92	94.90	90.90	119.08	122T4	4.812	7.00
	9T4	139.70	203.20	133.38	94.90	90.90	136.54	139T4	5.50	7.00
	10T4	152.40	190.50	146.08	101.30	97.30	149.24	152T4	6.00	7.50
	12T4	177.80	215.90	171.48	114.00	110.00	174.64	177T4	7.00	8.50
	14T4	203.20	254.00	196.88	133.00	129.00	200.04	203T4	8.00	10.00
	16T4	222.25	304.80	215.93	158.40	154.40	219.09	222T4	8.75	12.00
	16T4L	222.25	355.60	215.93	183.80	179.80	219.09	222T4L	8.75	14.00
	18T4	241.30	304.80	234.98	158.40	154.40	238.14	241T4	9.50	12.00
	18T4L	241.30	355.60	234.98	183.80	179.80	238.14	241T4L	9.50	14.00
	20T4	269.88	355.60	263.56	183.80	179.80	266.72	269T4	10.625	14.00
	20T4L	269.88	457.20	263.56	237.60	232.60	266.72	269T4L	10.625	18.00
	22T4	298.45	355.60	292.13	183.80	179.80	295.29	298T4	11.75	14.00
	22T4L	298.45	457.20	292.13	237.60	232.60	295.29	298T4L	11.75	18.00
	24T4	317.50	355.60	311.18	183.80	179.80	314.34	317T4	12.50	14.00
	24T4L	317.50	457.20	311.18	237.60	232.60	314.34	317T4L	12.50	18.00
	26T4L	355.60	558.80	349.28	288.40	283.40	352.44	355T4L	14.00	22.00
	28T4L	374.65	558.80	368.33	288.40	283.40	371.49	374T4L	14.75	22.00

Codes ending in "L" denote the long-pin variant. The International Nonproprietary Name maps each connector to its imperial diameter and length.

05

Technical Specifications of Graphite Electrodes

Physical and electrical properties across our three grades, with separate values for the electrode body and the connector (nipple) where applicable. Every shipment is accompanied by a Material Test Report (MTR).

Feature Item		Unit	Nominal diameter (mm)
			High Power	Near-Ultra-High Power	Ultra-High Power
			75 – 550	350 – 500	350 – 700
Resistivity	Electrode	μΩ·m	5.8 – 7.0	5.5 – 6.5	4.0 – 5.5
Resistivity	Connector	μΩ·m	3.5 – 5.0	3.2 – 4.5	2.8 – 4.0
Flexural strength	Electrode	MPa	10.0 – 13.0	10.0 – 15.0	10.0 – 15.0
Flexural strength	Connector	MPa	18.0 – 22.0	20.0 – 25.0	20.0 – 30.0
Modulus of elasticity	Electrode	GPa	10.0 – 12.0	10.0 – 14.0	12.0 – 16.0
Modulus of elasticity	Connector	GPa	14.0 – 18.0	16.0 – 22.0	16.0 – 25.0
Volumetric density	Electrode	g/cm³	1.62 – 1.70	1.65 – 1.72	1.66 – 1.75
Volumetric density	Connector	g/cm³	1.75 – 1.80	1.78 – 1.82	1.80 – 1.90
Ash content		%	0.3	0.2	0.2
C.T.E. 100 – 500 °C	Electrode	×10⁻⁶ / °C	1.5 – 2.2	1.5 – 1.8	1.1 – 1.5
C.T.E. 100 – 500 °C	Connector	×10⁻⁶ / °C	1.0 – 1.4	1.0 – 1.4	0.5 – 1.2

06

Standard Dimensions & Weight of Graphite Electrodes

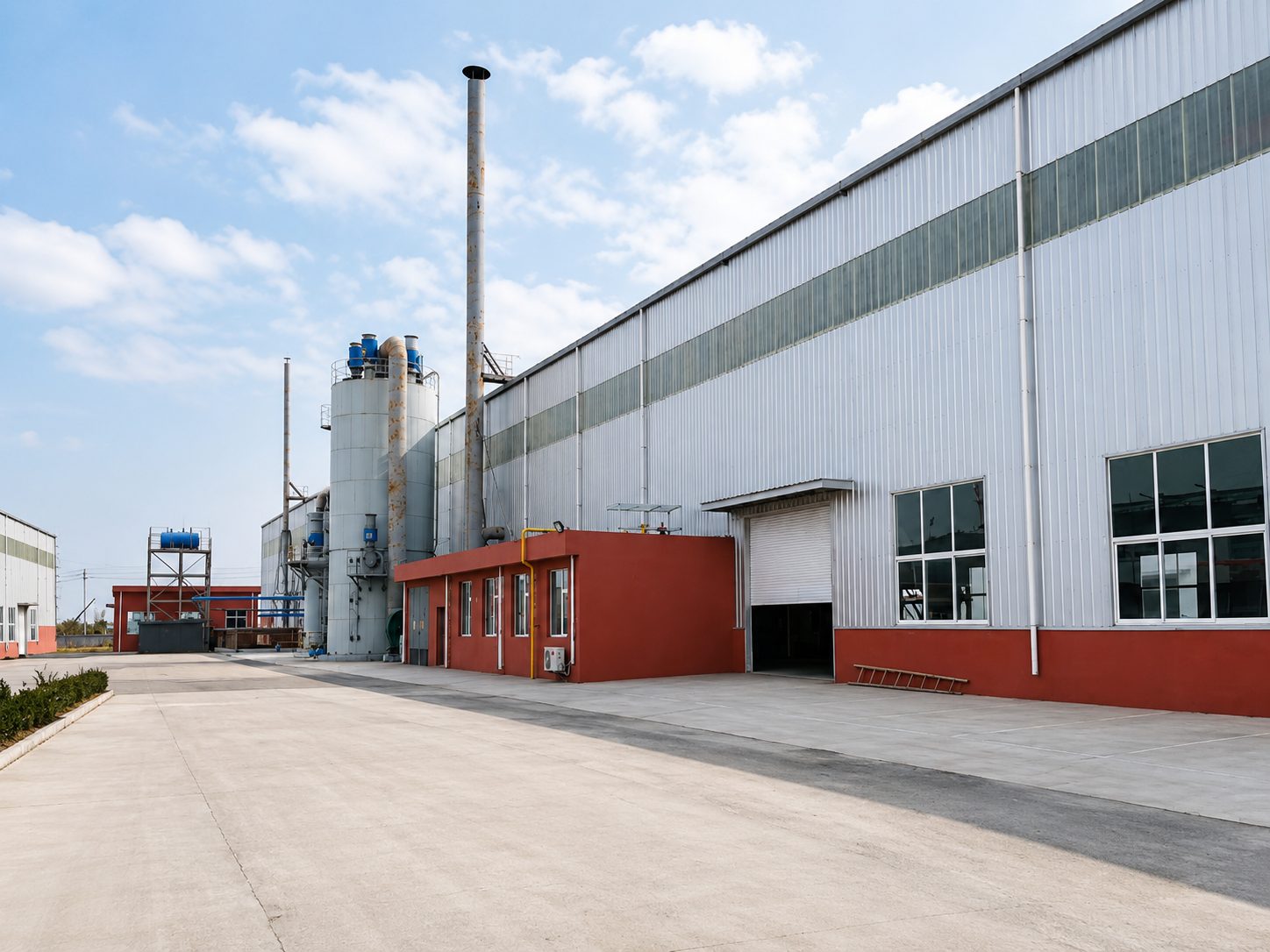

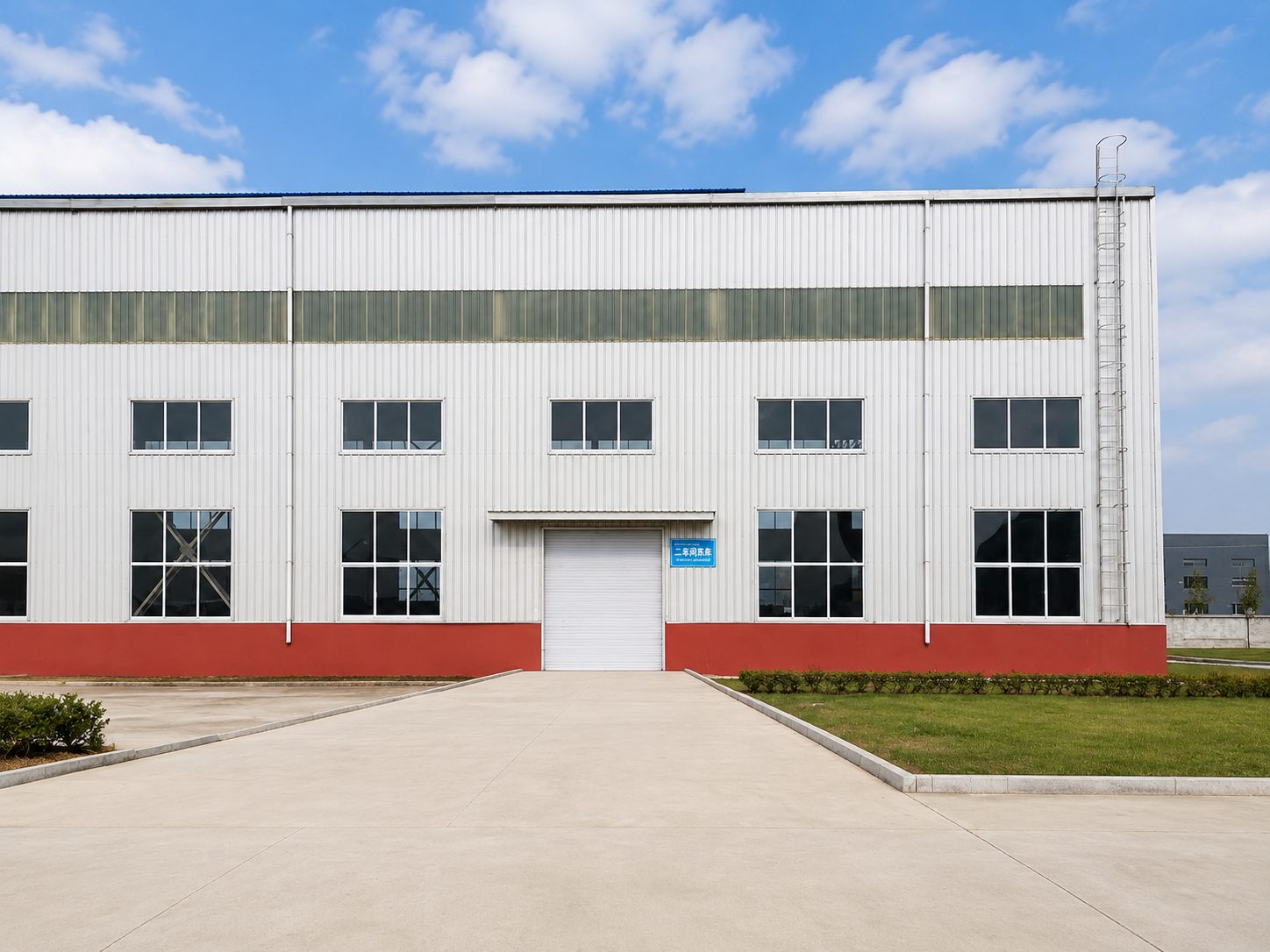

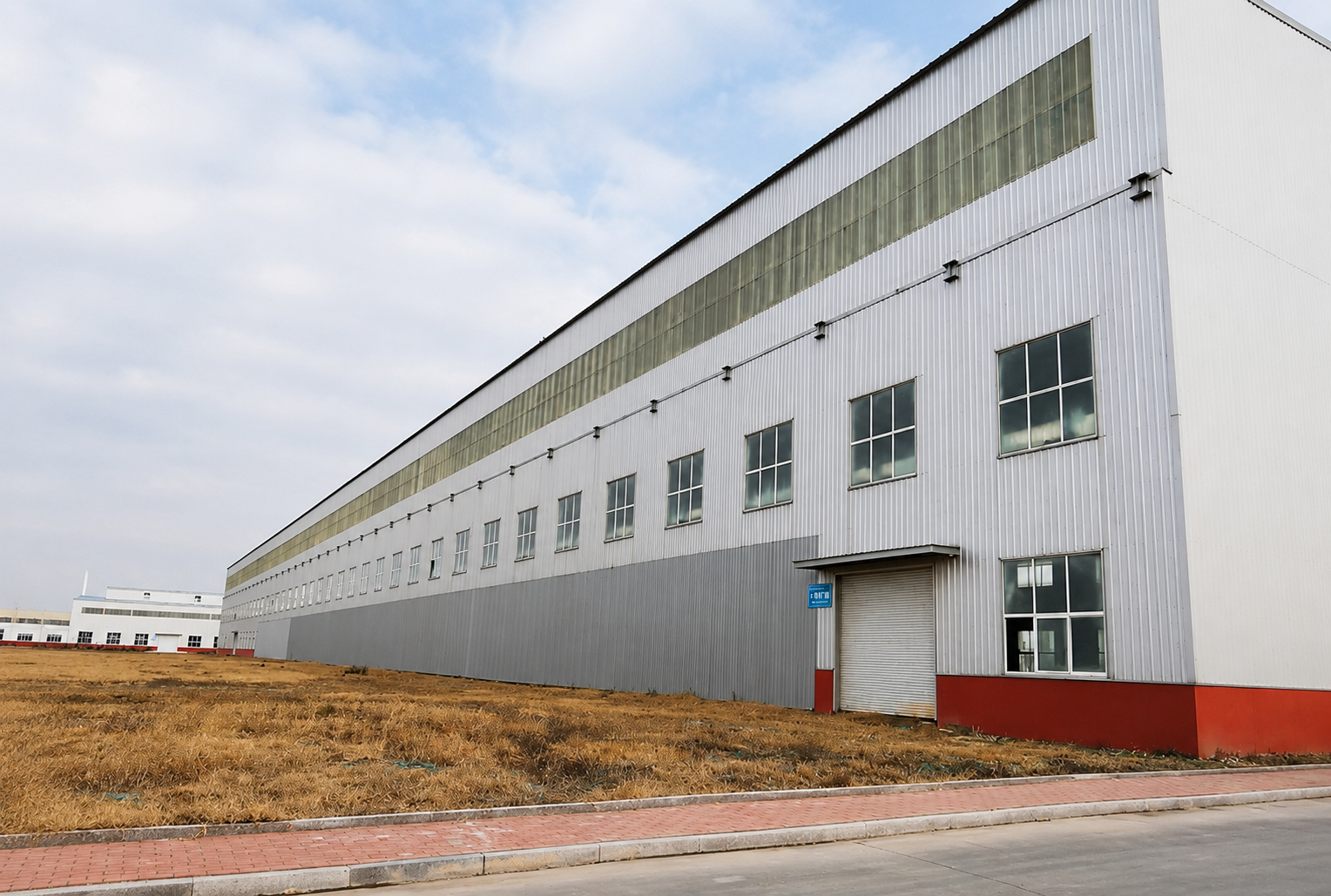

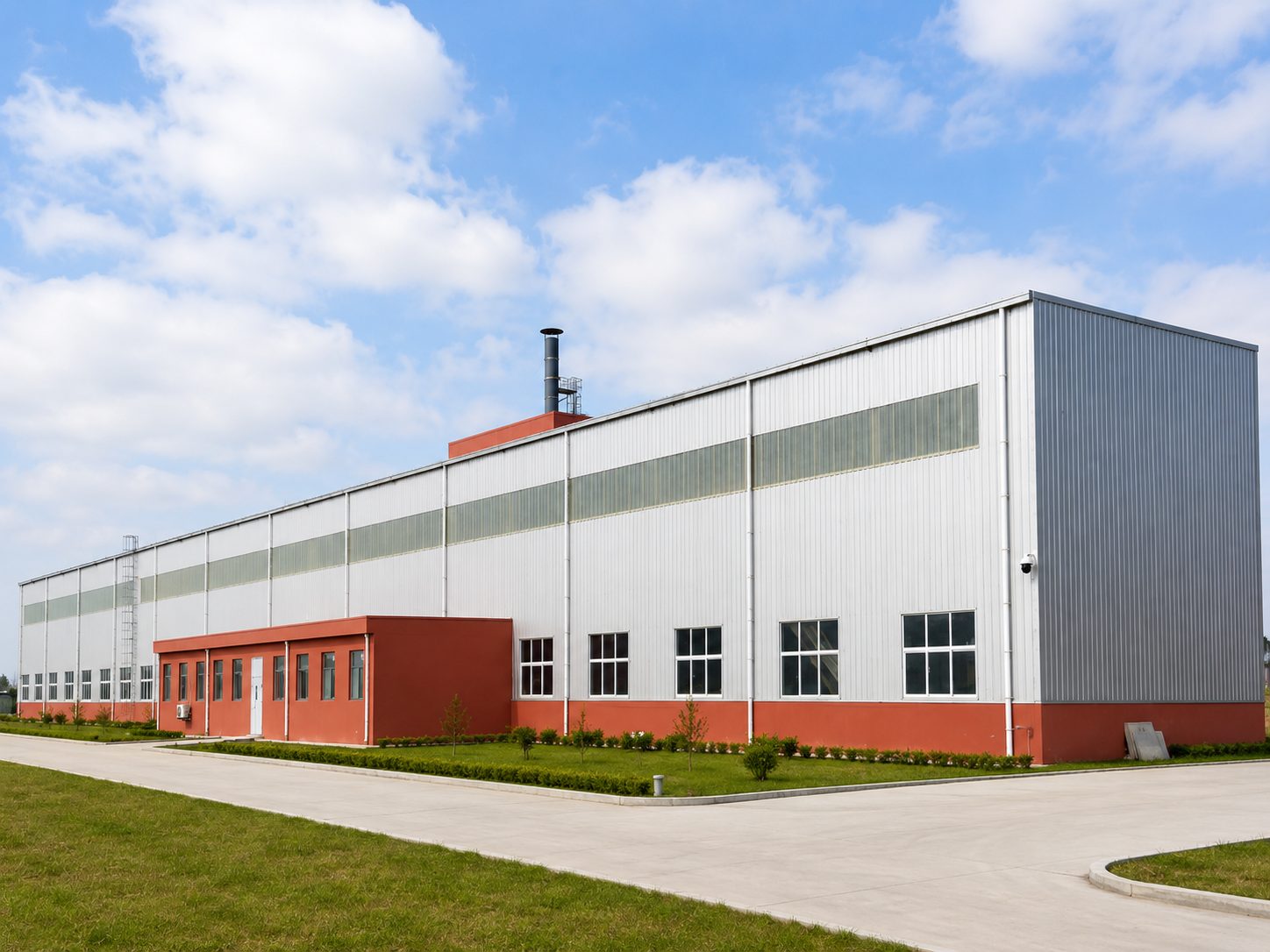

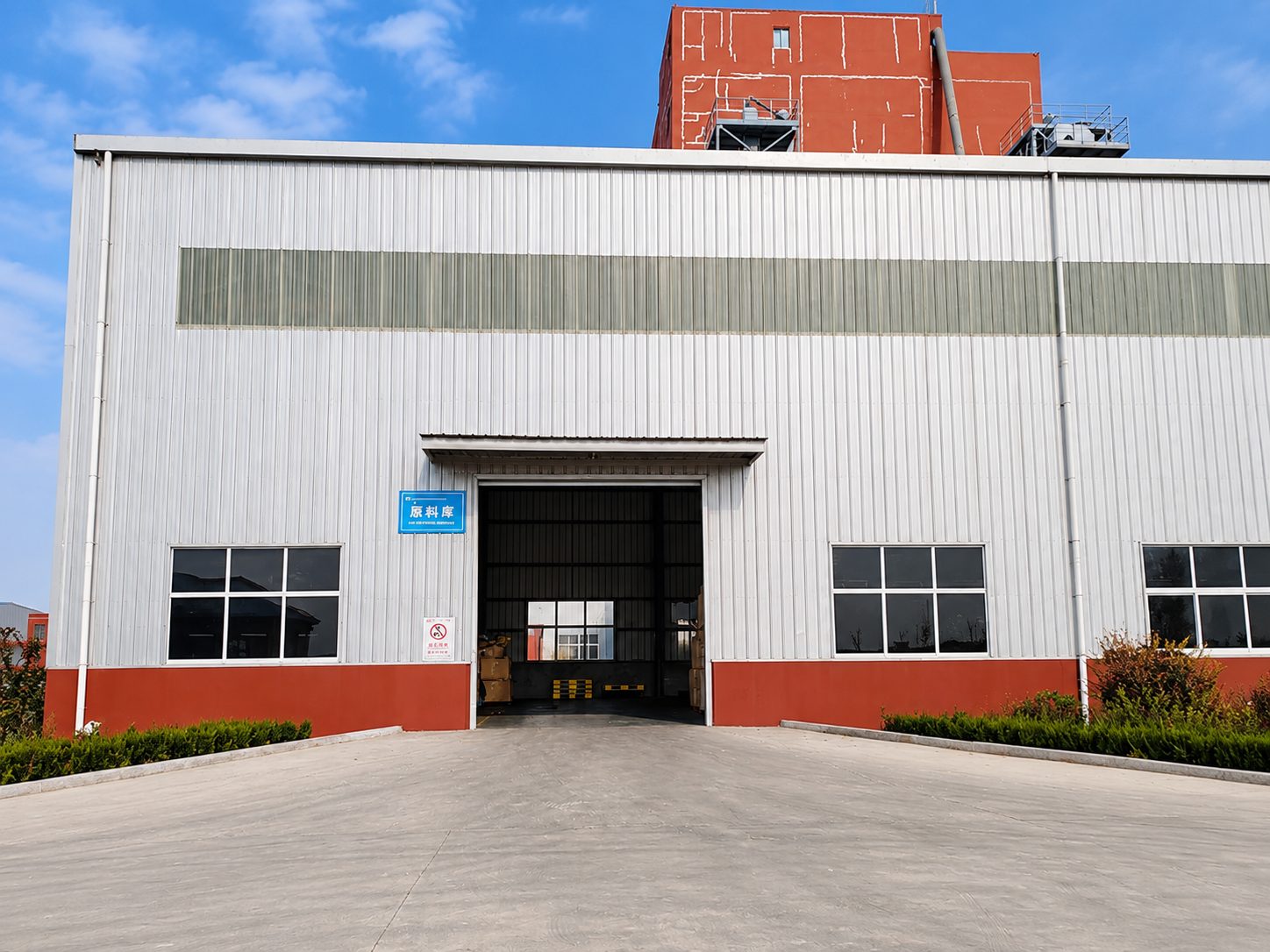

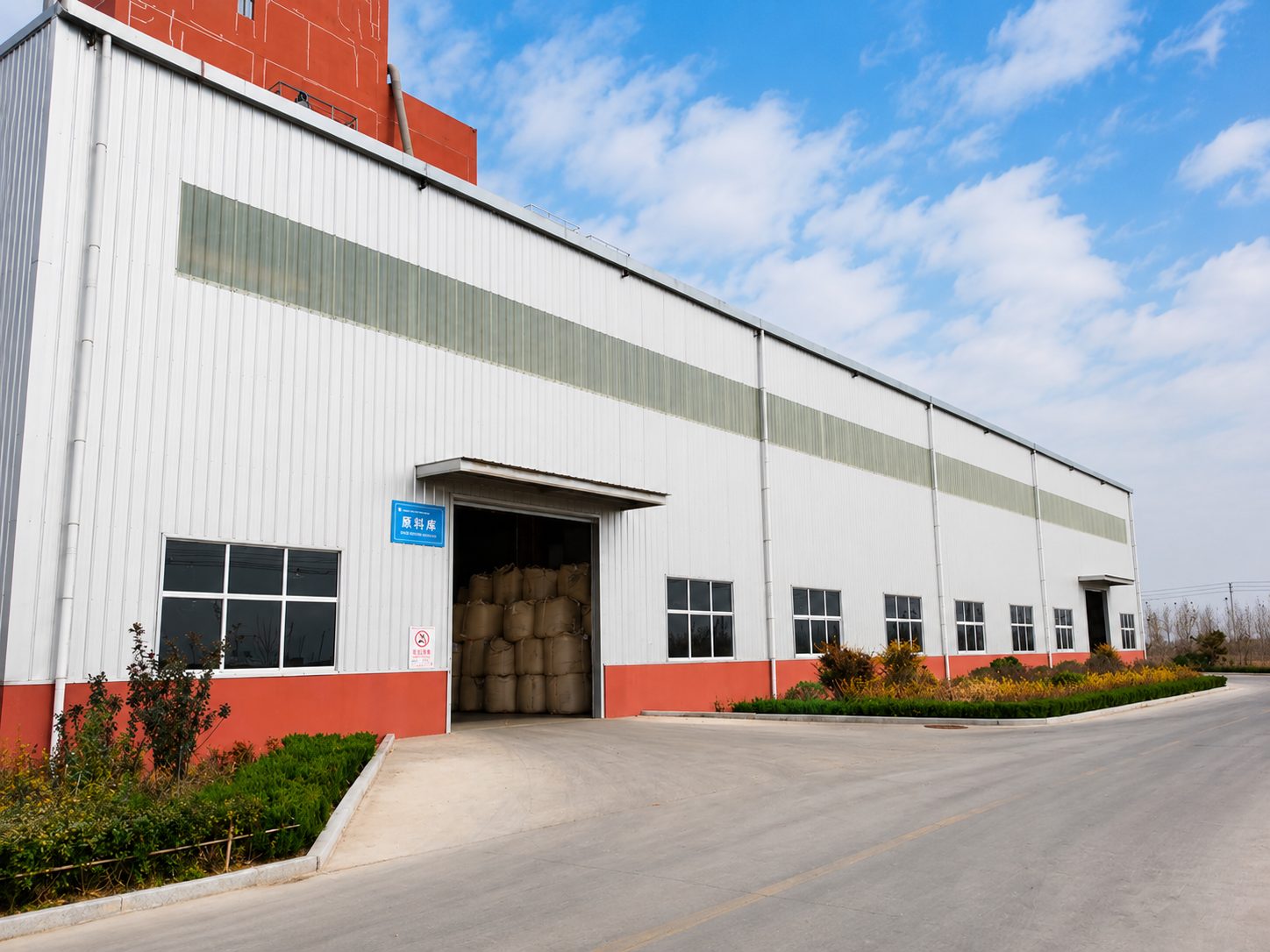

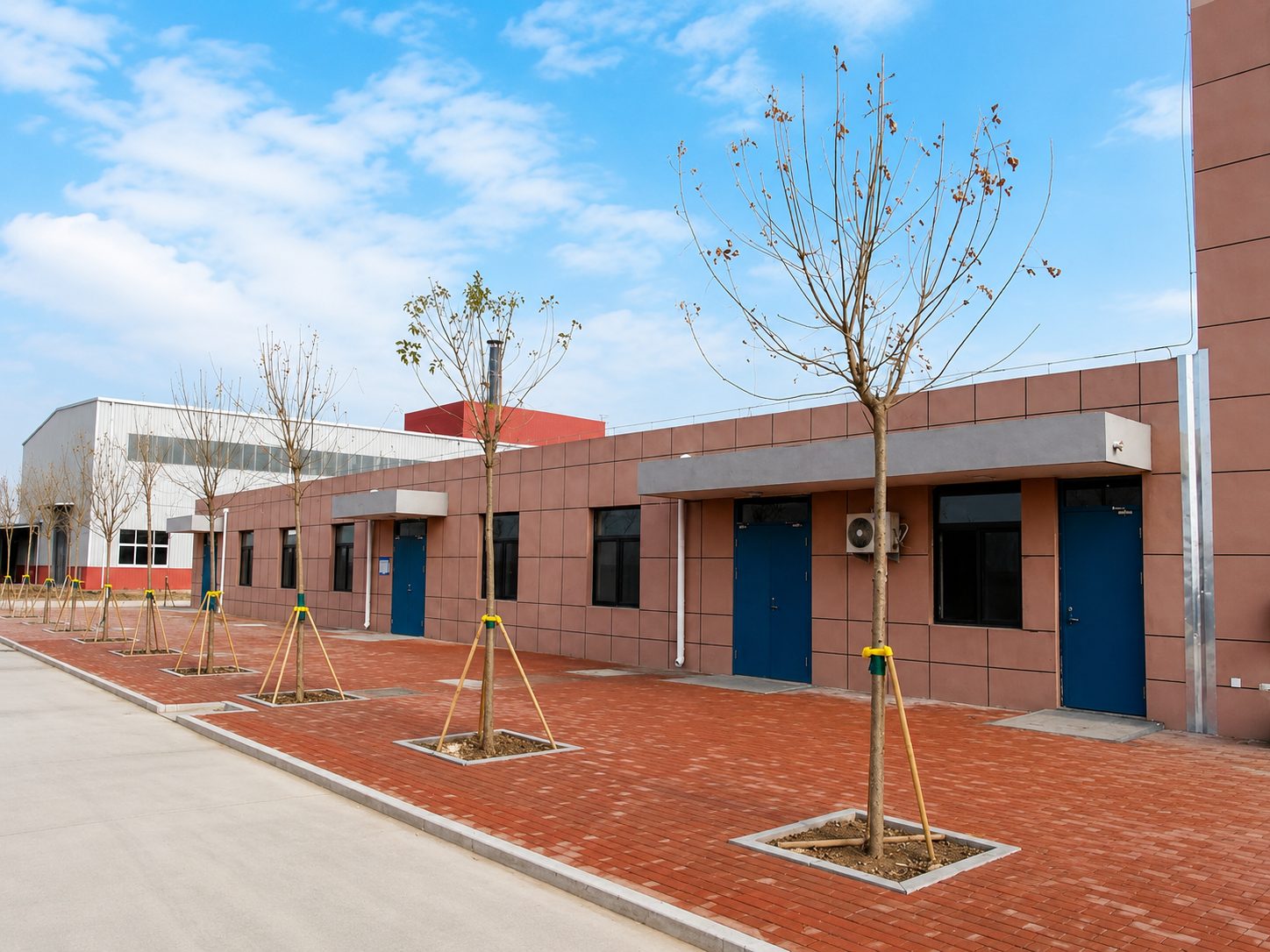

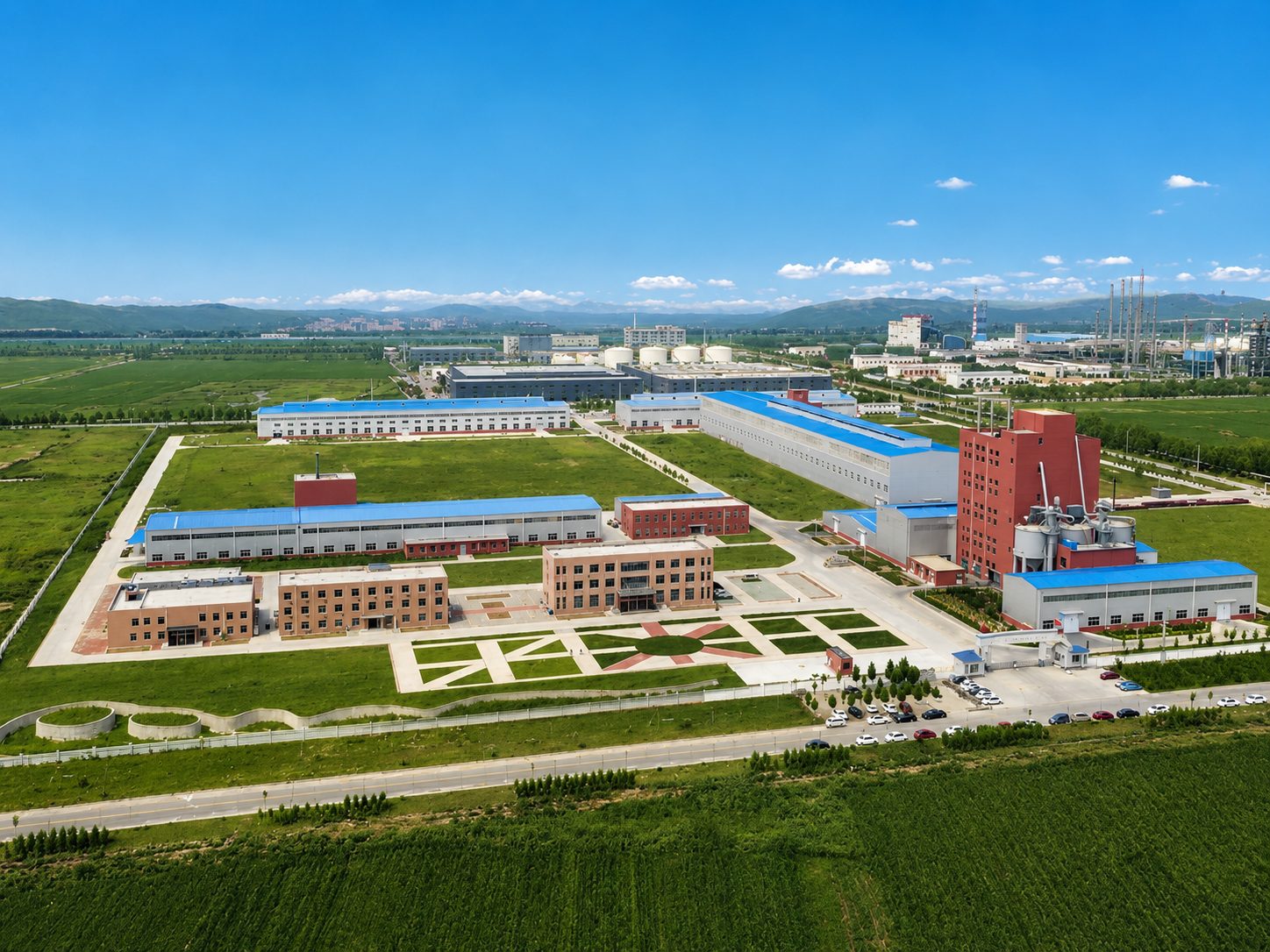

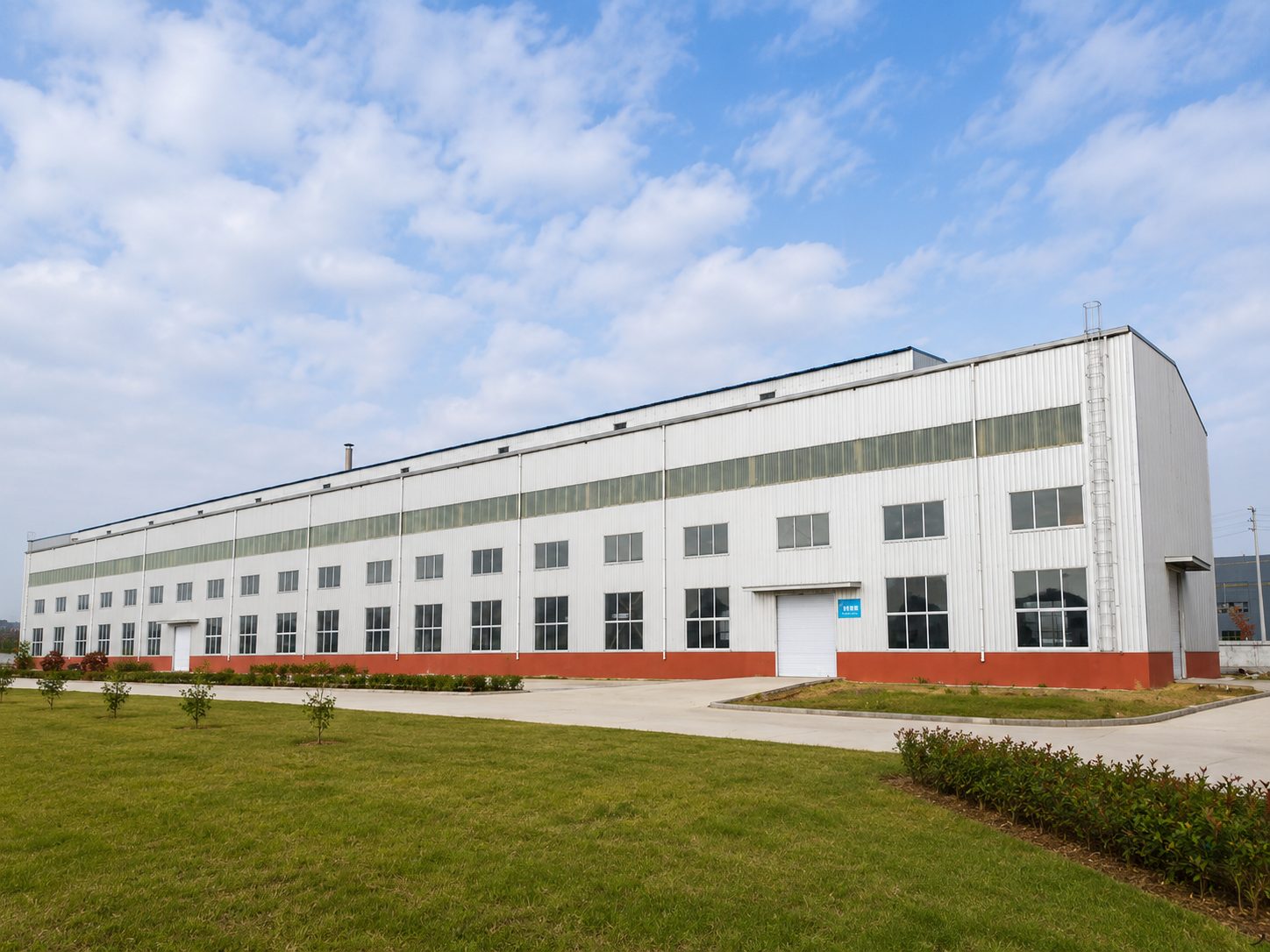

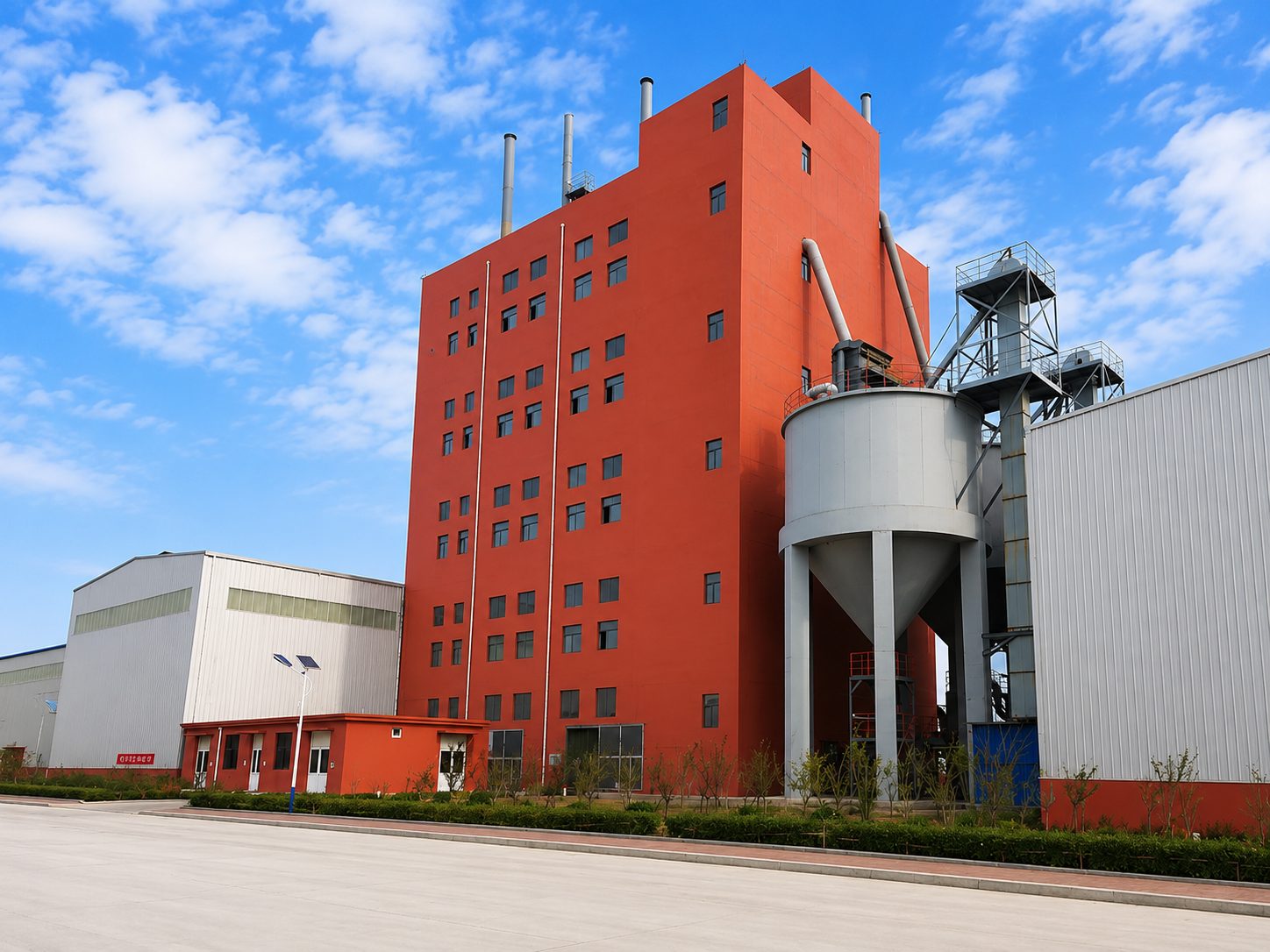

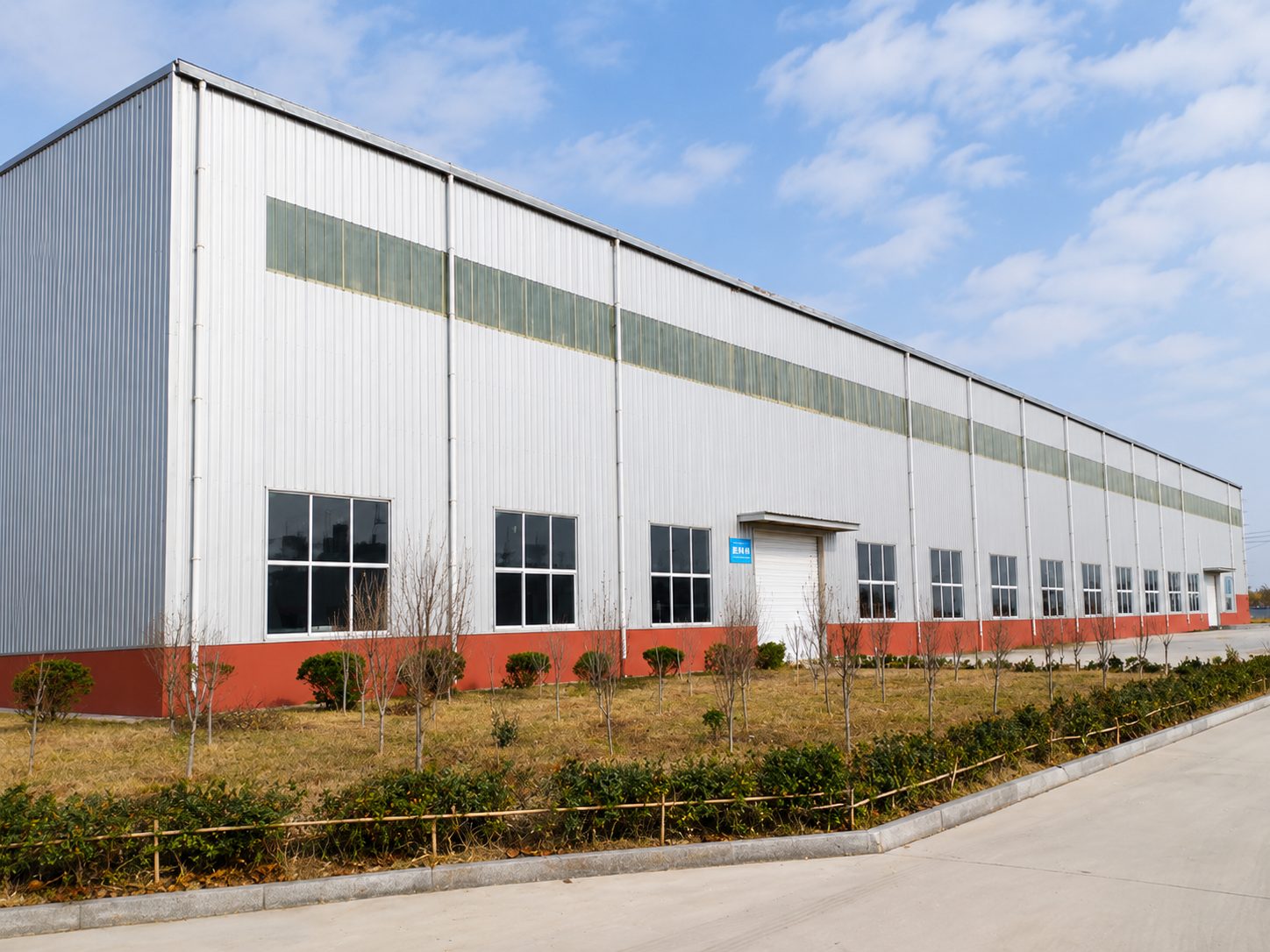

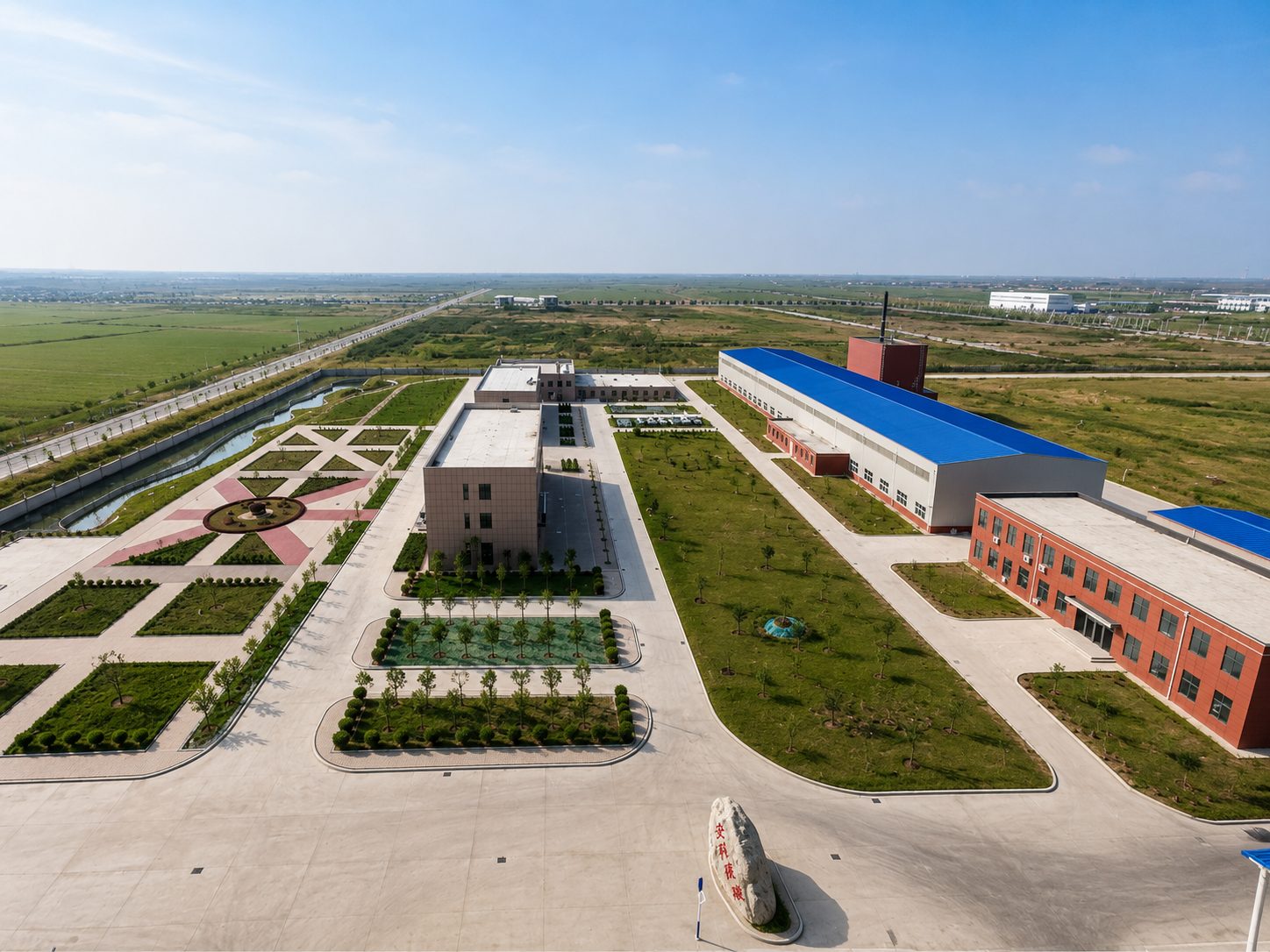

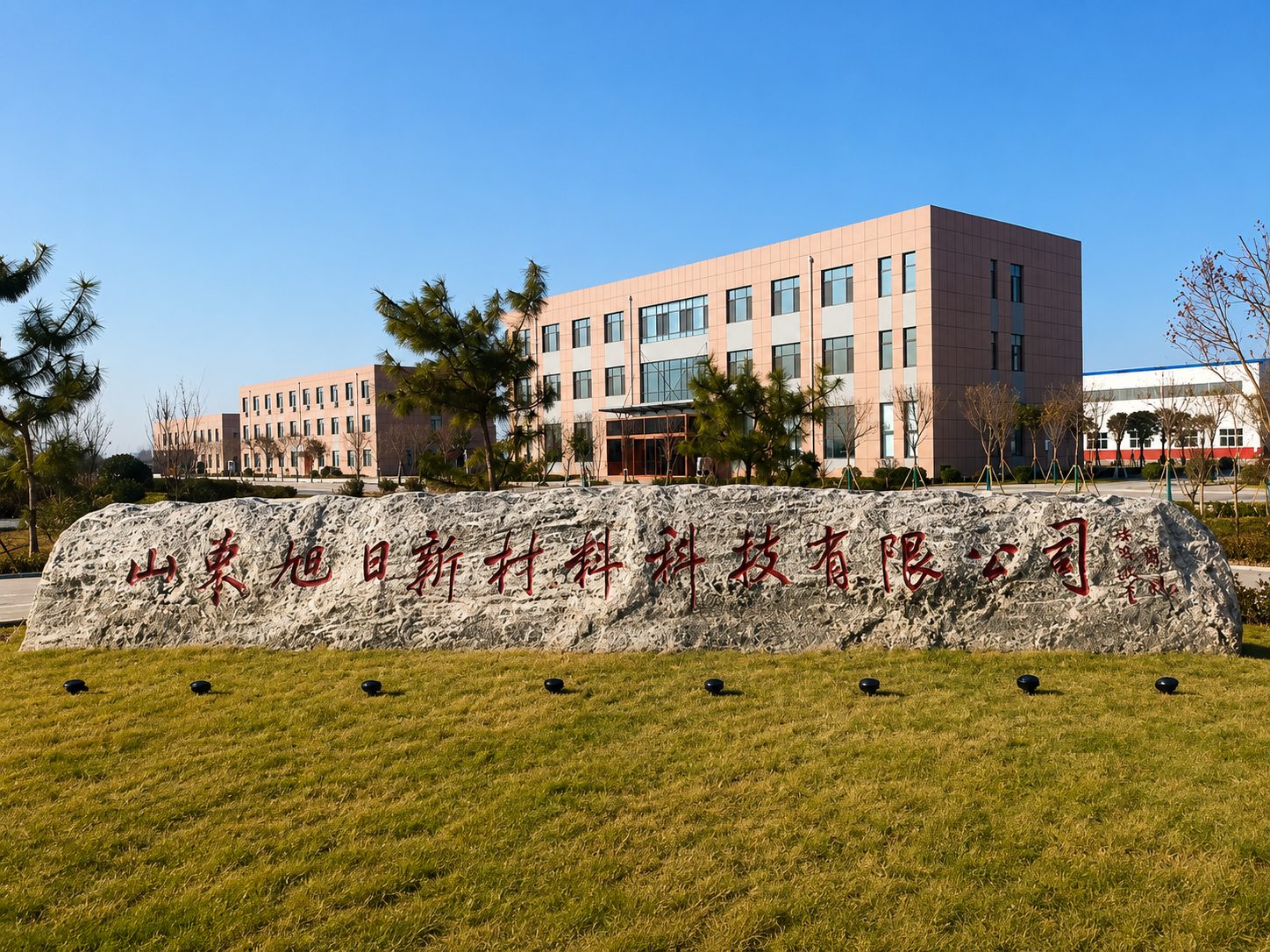

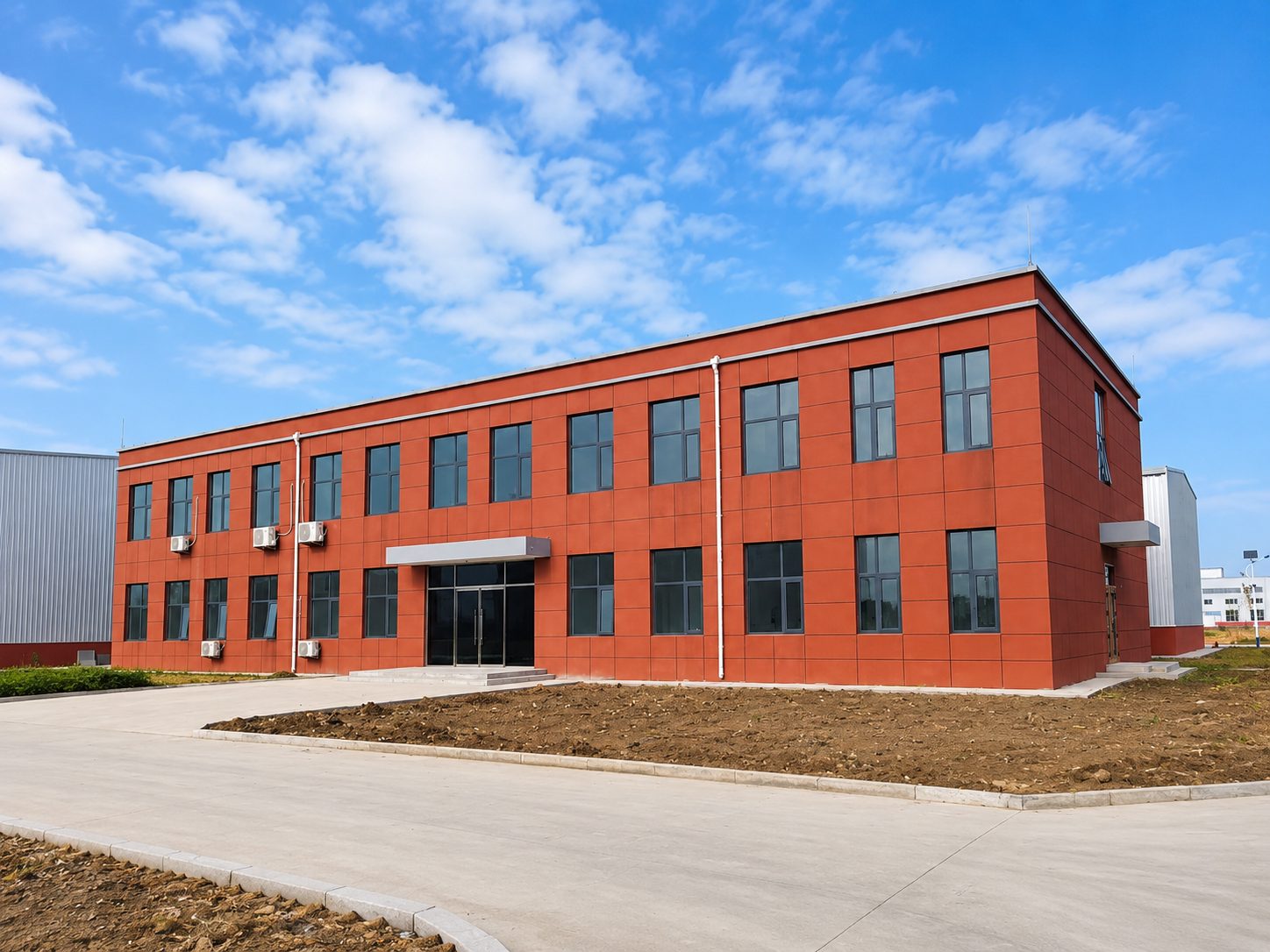

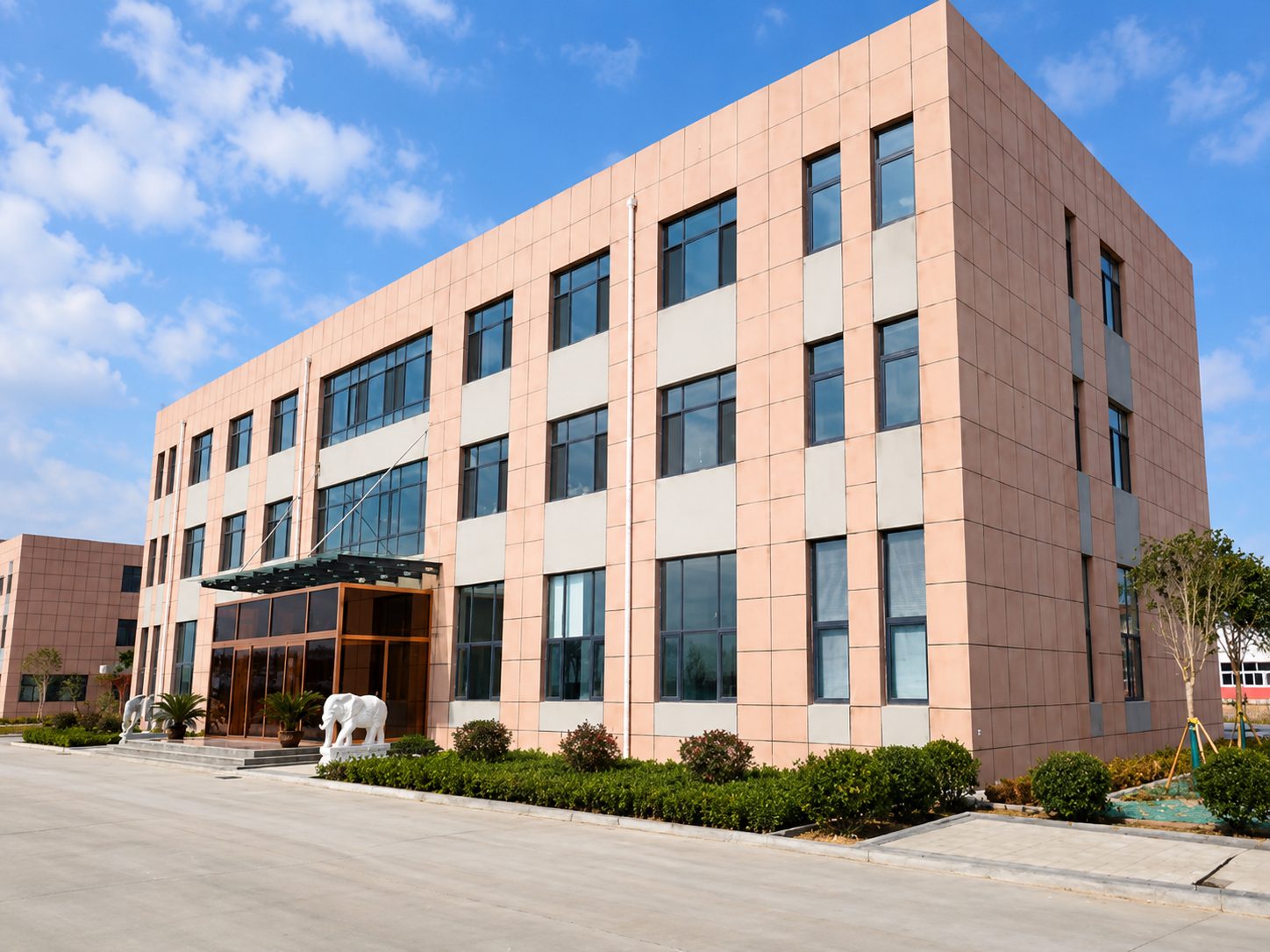

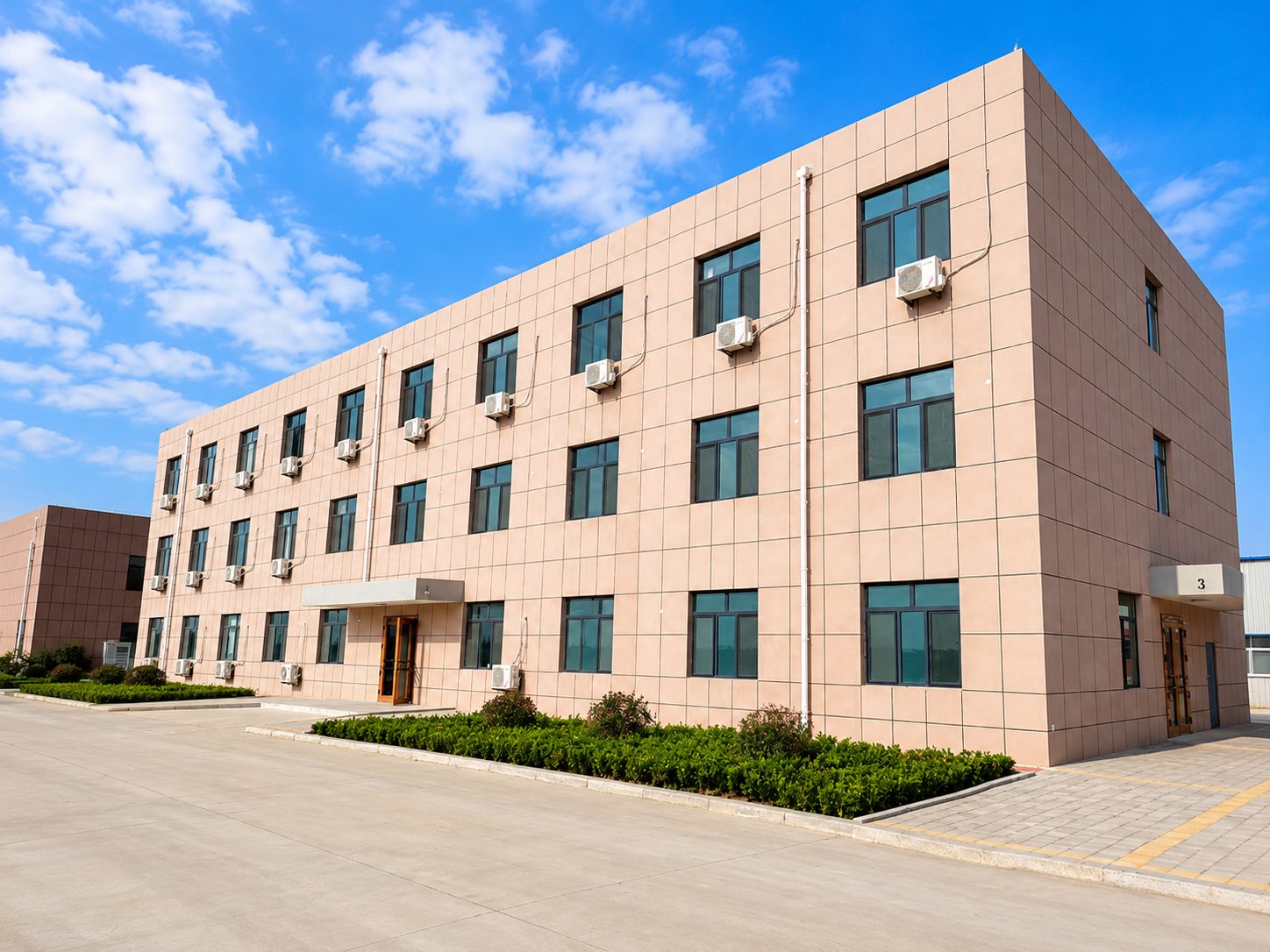

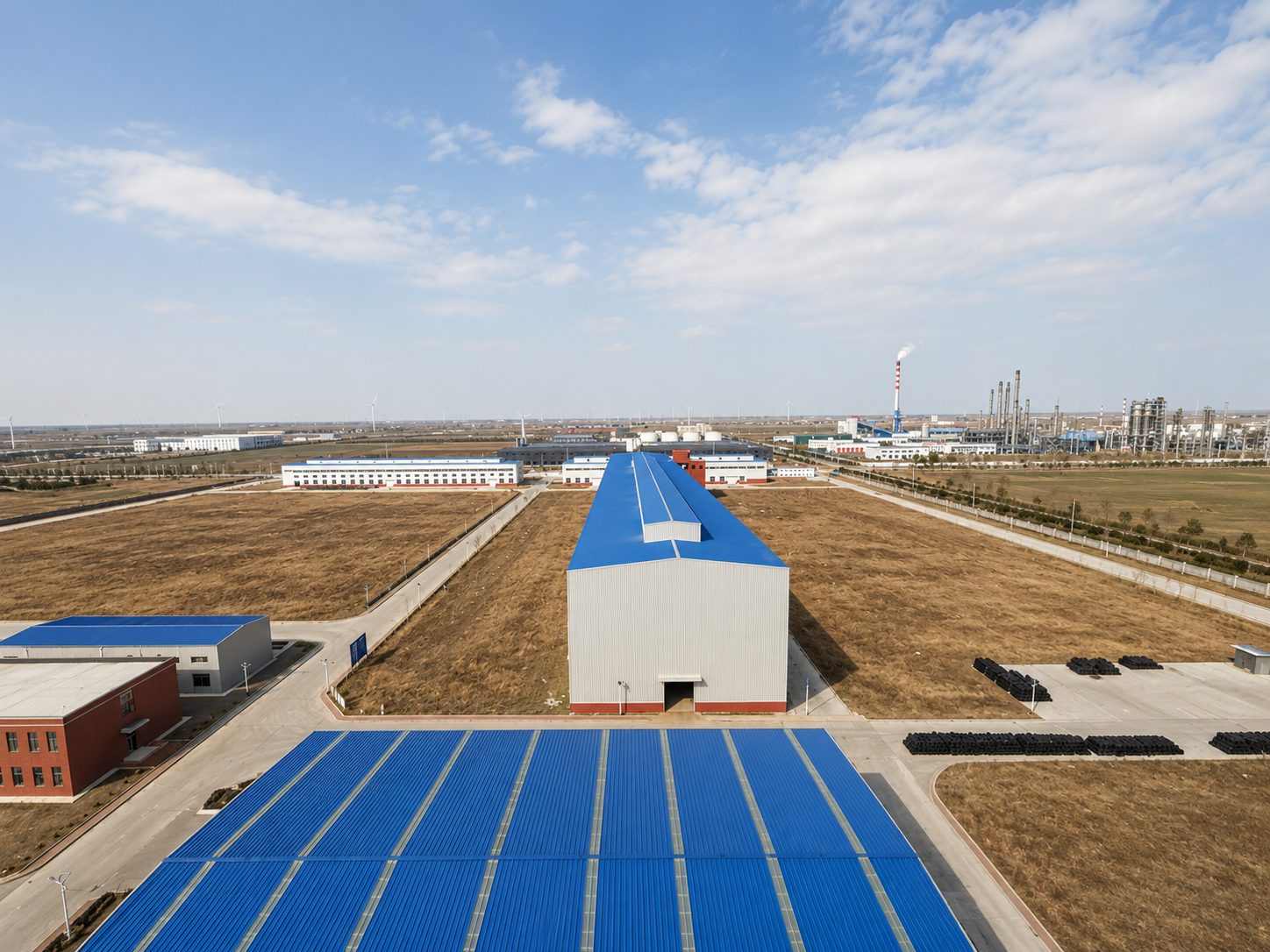

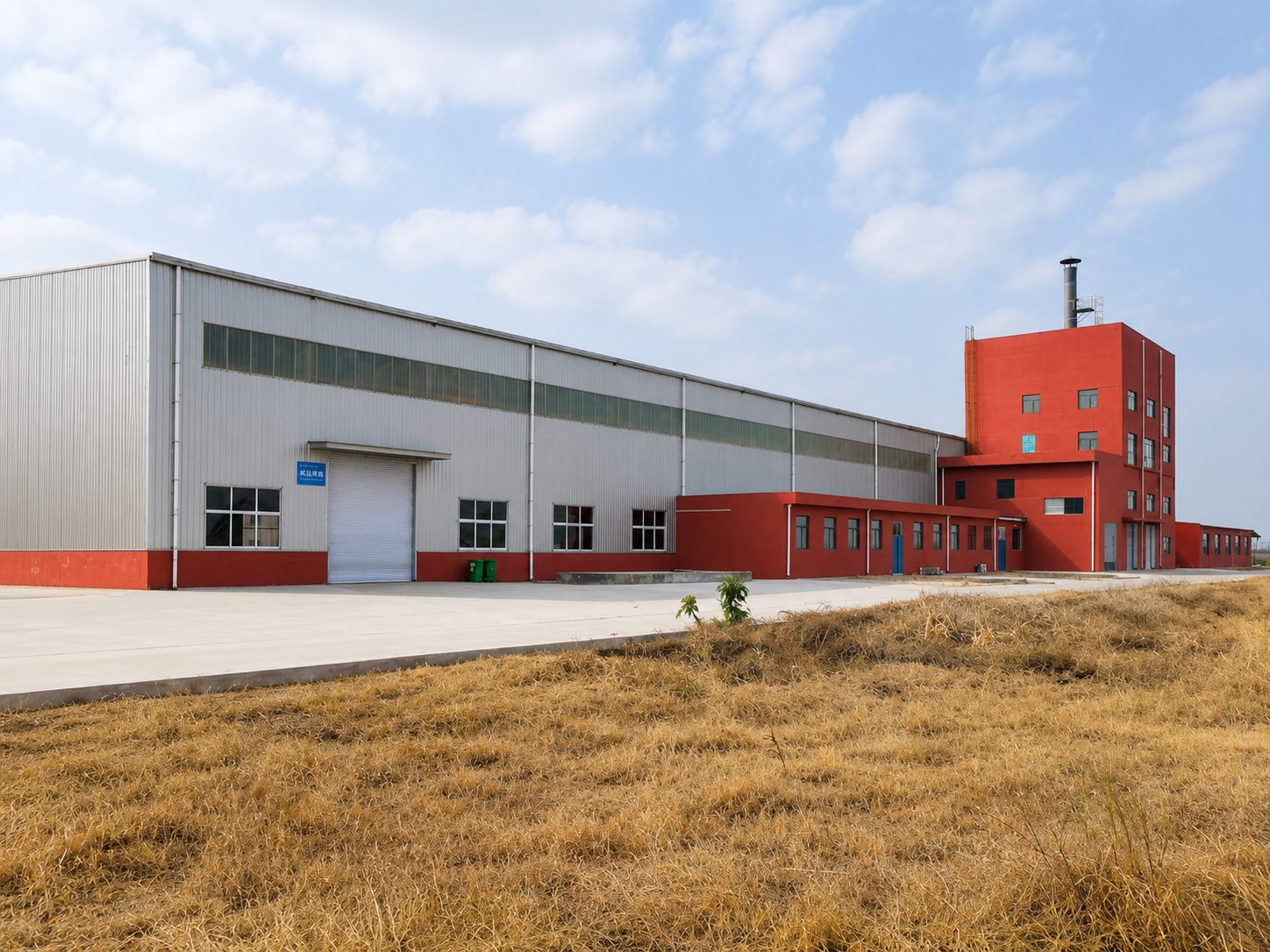

Facility Gallery

Product Range

Graphite Electrode Solutions

We specialise in ultra-high power (UHP) graphite electrodes of 600mm and above — the standard demanded by Europe's most productive electric arc furnace operations.

Category 01

Graphite Electrode

Regular Power (RP), High Power (HP), and Ultra-High Power (UHP) grades for the full range of electric arc furnace operations.

→

Category 02

Artificial Graphite Powder

High-purity synthetic graphite powder for lithium-ion battery anodes, lubricants, and specialty materials.

→

Category 03

Ingredients

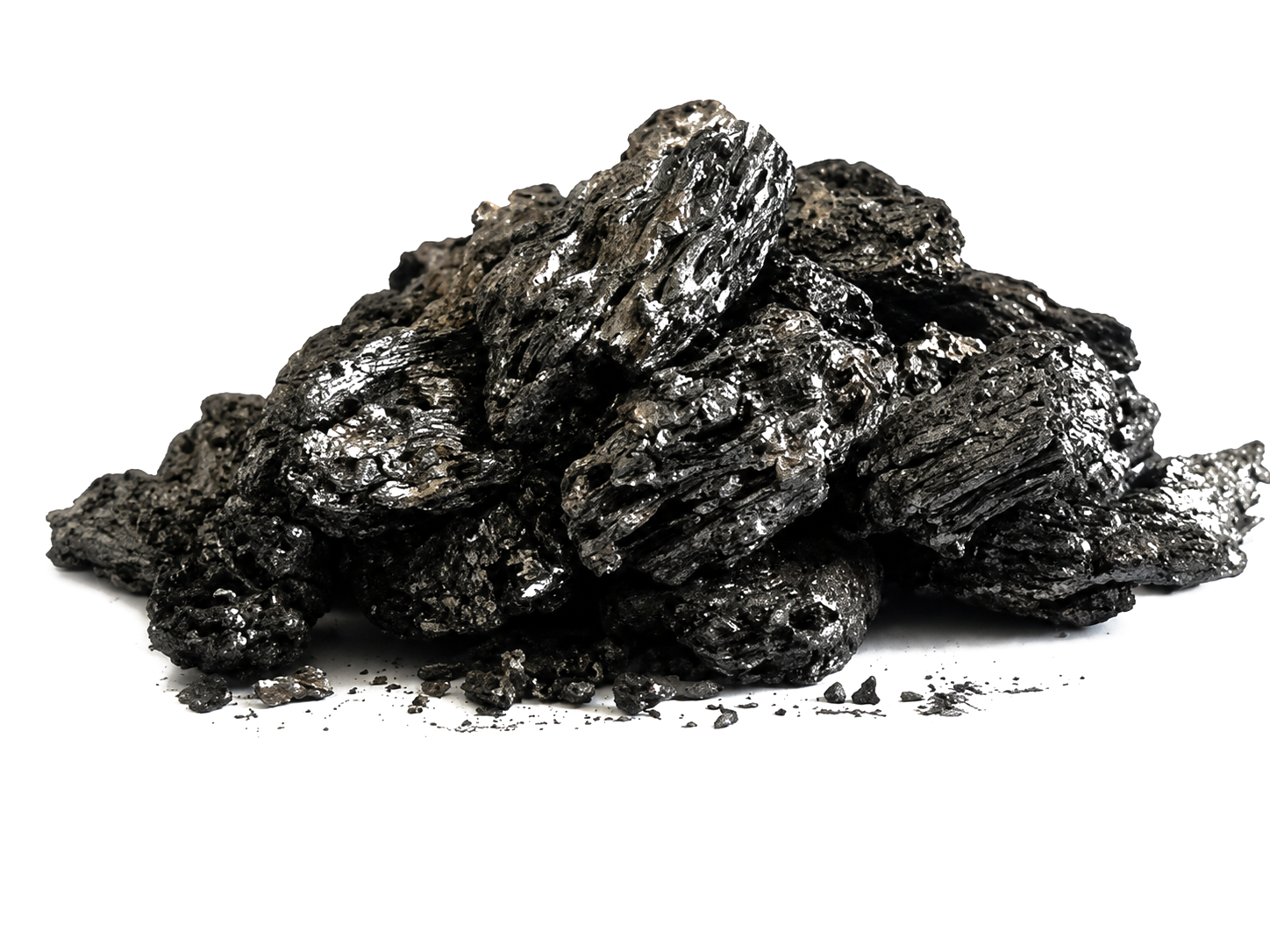

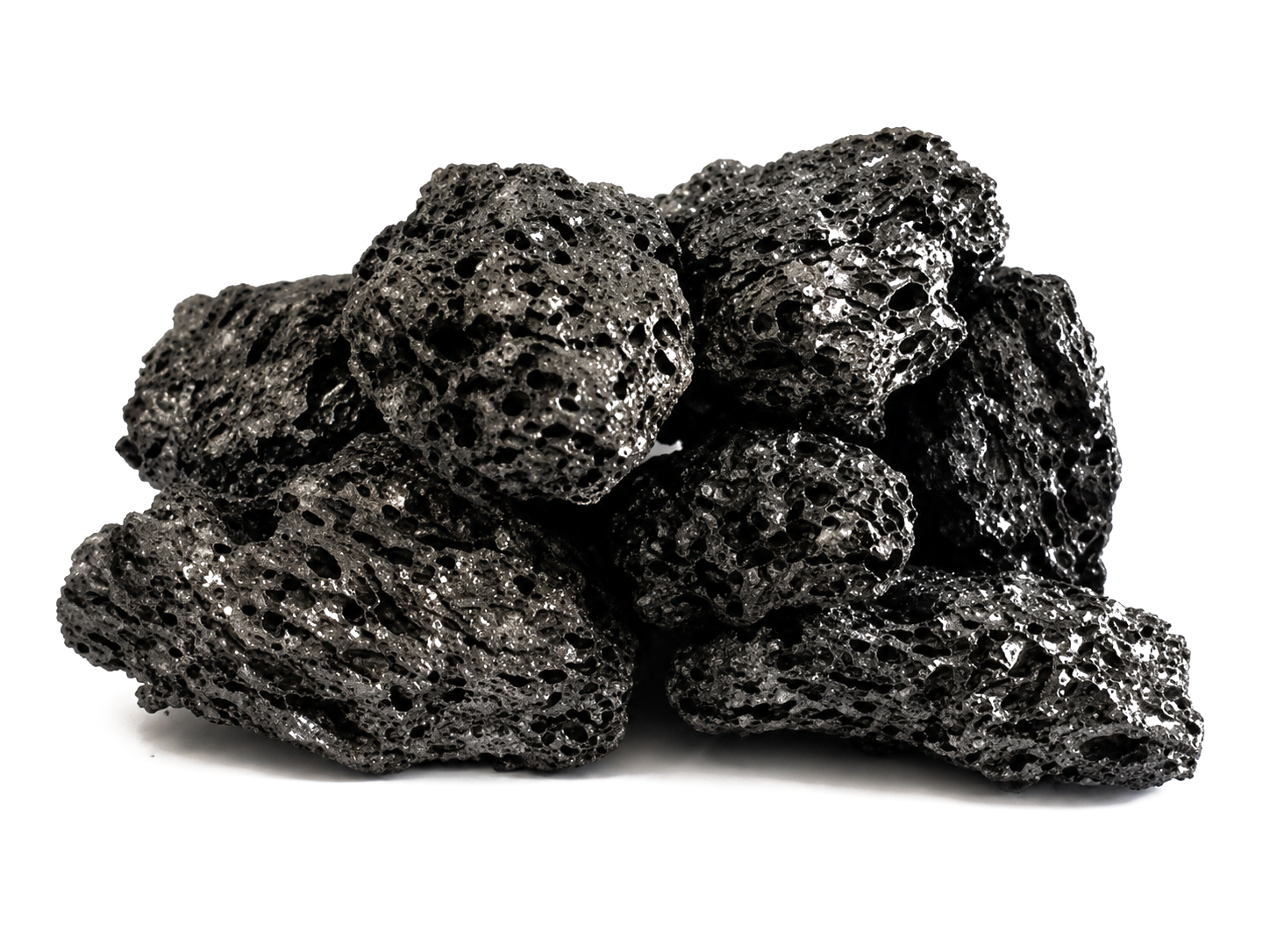

Raw materials and feedstock for graphite production — petroleum coke, needle coke, and coal tar pitch supplied to industrial buyers worldwide.

→

← Back to Products Category 01

Graphite Electrode

Product Details · Standard Dimensions & Weight

All shipments include a Material Test Report (MTR), Certificate of Conformity and dimensional inspection record.

Nominal Diameter	Diameter Range (mm)		Length Range (mm)			Standard Weight (kg)
Nominal Diameter	Maximum	Minimum	Nominal	Maximum	Minimum	Standard Weight (kg)
375 mm	78	73	1000	1050	925	7
4100 mm	103	98	1200	1250	1100	16
5 1/8130 mm	132	129	1500	1550	1400	33
6150 mm	154	149	1500	1550	1400	45
7175 mm	179	174	1500	1550	1400	59
8200 mm	205	200	1500	1550	1400	76
8200 mm	205	200	1800	1875	1700	100
9225 mm	230	225	1500	1550	1400	101
10250 mm	256	251	1500	1550	1400	120
10250 mm	256	251	1800	1875	1700	155
12300 mm	307	302	1500	1550	1400	185
12300 mm	307	302	1800	1875	1700	230
14350 mm	357	352	1500	1550	1400	253
			1800	1875	1700	305
			2400	2475	2275	406
16400 mm	409	403	1500	1550	1400	334
16400 mm	409	403	1800	1875	1700	395
18450 mm	460	454	1800	1875	1700	505
			2100	2175	1975	585
			2400	2475	2275	665
20500 mm	511	505	1800	1875	1700	617
			2100	2175	1975	717
			2400	2475	2275	824
22550 mm	562	556	2100	2175	1975	873
22550 mm	562	556	2400	2475	2275	995
24600 mm	613	607	2400	2475	2275	1190
24600 mm	613	607	2700	2850	2550	1350
26650 mm	663	657	2700	2850	2550	1580
28700 mm	714	708	2700	2850	2550	1840

Interested in Graphite Electrodes?

Send an enquiry directly to JianHua Li, our European representative. We will respond within 24 business hours.

Send an enquiry → Email us

← Back to Products Category 02

Artificial Graphite Powder

High-purity synthetic graphite powder for lithium-ion battery anodes, industrial lubricants, refractory components, and other specialty material applications.

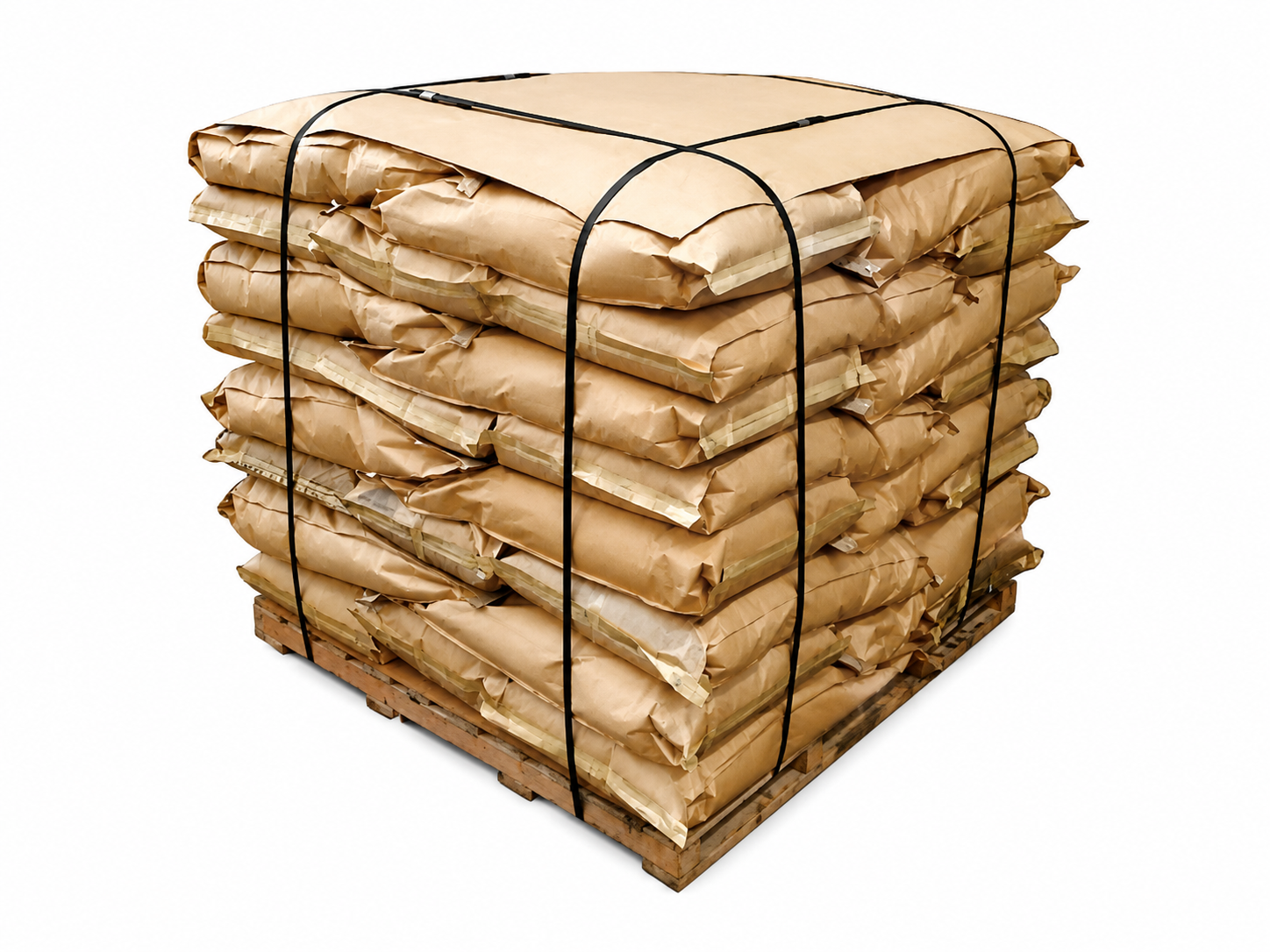

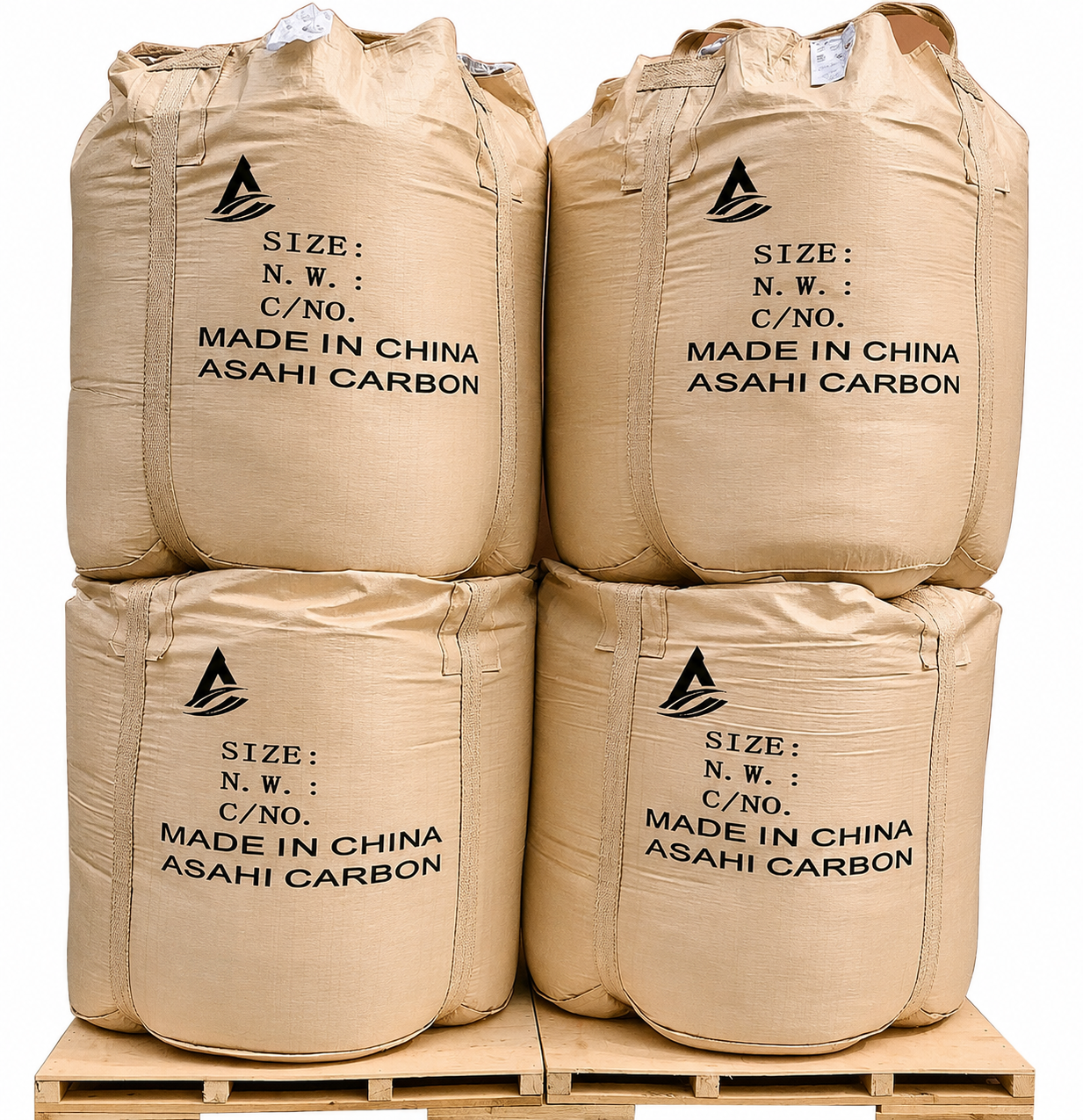

Artificial graphite powder in 500 kg Asahi branded bigbags on pallets

Interested in Artificial Graphite Powder?

Send an enquiry directly to JianHua Li, our European representative. We will respond within 24 business hours.

Send an enquiry → Email us

← Back to Products Category 03

Ingredients

Raw materials and feedstock for graphite production — the same inputs we use in our own electrode and powder manufacturing, available to industrial buyers worldwide.

Calcined Petroleum Coke

Anode-grade calcined petroleum coke (CPC) used as a primary carbon source in graphite electrode and anode paste production. Low sulphur, low metals, high fixed carbon — sourced and calcined to electrode-grade specifications.

Premium Needle Coke

Highly crystalline needle coke — the flagship feedstock for Ultra-High Power (UHP) graphite electrodes. Anisotropic, low CTE, low sulphur — engineered for electrodes running the most demanding electric arc furnace duties.

Interested in Raw Materials?

Send an enquiry directly to JianHua Li, our European representative. We will respond within 24 business hours.

Send an enquiry → Email us

Technical Support Packaging and Shipping

Services · Technical Support

Engineering Guidance from Spec to Furnace

Our team works directly with your metallurgists and procurement to specify the right grade, optimise consumption, and resolve operational issues — drawing on both our Chinese R&D centre and Sojitz Ject's Japanese engineering network.

Technical References

Services · Packaging and Shipping

Container Transportation

Our electrodes are packaged on wooden pallets and secured with steel straps. The threads and end faces are protected by protective covers to minimize the risk of damage to these critical areas. When using container transport, each 20-foot container can carry electrodes of various specifications along with the corresponding number of connectors, as shown below.

Electrode Size (inches)		Packaging Box Dimensions (inches)Length × Width × Height	Packaging Boxes per Container	Electrodes per Box	Electrodes per Container	Net Weight per Container (t)
Diameter	Length	Packaging Box Dimensions (inches)Length × Width × Height	Packaging Boxes per Container	Electrodes per Box	Electrodes per Container	Net Weight per Container (t)
12	72	81.1 × 38.1 × 14.5	30	3	90	20
14	72	81.5 × 44 × 18.11	21	3	63	20
14	84	98.4 × 44 × 18.11	16	3	48	18
14	96	106.3 × 44 × 18.11	16	3	48	20
16	72	83.6 × 50.2 × 20.3	16	3	48	20
16	72	83.6 × 34.2 × 20.3	24	2	48	20
16	84	96.4 × 50.2 × 20.3	8	3	40	18
16	84	96.4 × 34.2 × 20.3	8	2	40	18
16	96	106.3 × 50.2 × 20.3	8	3	38	20
16	96	106.3 × 34.2 × 20.3	7	2	38	20
18	72	86.6 × 37.8 × 22.2	20	2	40	20
18	84	98.4 × 37.8 × 22.2	16	2	32	18
18	96	108.3 × 37.8 × 22.2	14	2	28	20
20	72	86.6 × 42.5 × 24.2	15	2	30	20
20	84	98.4 × 42.5 × 24.2	12	2	24	18
20	96	108.3 × 42.5 × 24.2	12	2	24	20
22	84	98.4 × 46 × 25.6	10	2	20	18
22	96	108.3 × 46 × 25.6	10	2	20	20
22	110	122 × 46 × 25.6	6	2	12	16
24	84	98.4 × 50.2 × 28.5	6	2	12	14
24	96	108.3 × 50.2 × 28.5	6	2	12	16
24	110	122 × 50.2 × 28.5	3	2	6	8

For electrode sizes offered with two box layouts, the container total reflects a mixed load of both box types; figures are nominal and confirmed per order. Net weight is shown in metric tonnes.

Applications

Industries We Serve

Carbon and graphite products are fundamental to some of Europe's most important industrial sectors.

01

Metallurgy & Steel

EAF steelmaking is the backbone of European green steel. Our UHP electrodes are engineered for continuous high-load operation in electric arc furnaces.

02

Chemical Industry

Graphite electrodes and special carbon materials serve critical roles in chlor-alkali production, industrial electrolysis, and chemical processing.

03

Aerospace & Defence

High-purity carbon materials for aerospace component manufacturing, heat shields, and specialist structural composites demanding precise tolerances.

04

Energy & Nuclear

Graphite's unique thermal and electrical properties make it indispensable in nuclear reactor moderators and advanced energy storage systems.

05

Battery & EVs

Artificial graphite powder for lithium-ion battery anodes, serving Europe's rapidly growing electric vehicle and stationary energy storage markets.

06

Non-Ferrous Metals

Electrodes for aluminium, copper, silicon, and ferroalloy smelting operations — precision-matched to the specific current densities of each furnace type.

07

Semiconductors

Ultra-pure graphite components for semiconductor crystal growing, epitaxial coating equipment, and high-temperature diffusion furnace applications.

08

Green Industry

Supporting Europe's decarbonisation goals: our products enable green steel production and next-generation clean energy technologies with lower carbon footprints.

Quality & Compliance

Standards That Matter to Europe

We maintain rigorous quality management systems aligned with international standards. Our documentation, testing records, and traceability protocols meet European import requirements.

ISO 9001

Quality Management

JIS Standards

Japanese Industrial

IEC Standards

International Electrotechnical

ASTM

Materials Testing

All products ship with full material test reports (MTR), certificate of conformity, and dimensional inspection records. Available in English, German, French, Italian, and Spanish on request.

Get in Touch

Talk to Our European Representative

JianHua Li is our dedicated liaison connecting industrial buyers across Europe, North America, and South America directly with our manufacturing capabilities. Reach out to discuss volumes, specifications, pricing, and supply agreements of any length — short-term or long-term.

```

JianHua Li

European Business Liaison · Asahi

@

sales@asahicarbon.de

Gmail

T

+49 160 3061395

Phone · Germany

◉

Germany — CET / CEST Timezone

Mon–Fri · Business Hours

Email Us

Company Offices

🇩🇪

ESRLorcy GmbH — Düsseldorf Bahnstr. 9, 40212 Düsseldorf, Germany · Tel: +49 160 3061395

🇯🇵

SOJITZ JECT CORPORATION — Tokyo HQ 8-6, Nishi-shimbashi 2-Chome, Minato-ku, Tokyo 105-0003 · Tel: +81-3-5511-2128

🇨🇳

Shandong Asahi Graphite New Material Technology Co., Ltd. — Factory (China) Linyi County Economic Development Zone, Dezhou City, Shandong · Tel: 0534-4777771

Request Information

Fill in your details and JianHua will respond within 24 hours with pricing and contract information.

First Name

Last Name

Company Name

Business Email

Country

Industry

Product Interest

Annual Volume Estimate

Message

Your enquiry will be handled directly by JianHua Li, our European Business Liaison. We typically respond within 24 business hours. Email: sales@asahicarbon.de · Phone: +49 160 3061395

```

Legal Information

Impressum

Angaben gemäß § 5 TMG

Unternehmen

Shandong Asahi Graphite New Material Technology Co., Ltd.
No. 1261 Chaofan Street, Linzi Town
Linyi County, Dezhou City
Shandong Province, China

Vertretungsberechtigter / Geschäftsführer

Wu Yun Zi

Europäischer Ansprechpartner

JianHua Li
Telefon: +49 160 3061395
E-Mail: sales@asahicarbon.de

Verantwortlich für den Inhalt nach § 18 Abs. 2 MStV

Wu Yun Zi
Shandong Asahi Graphite New Material Technology Co., Ltd.
No. 1261 Chaofan Street, Linzi Town, Linyi County, Dezhou City, Shandong Province, China

Haftung für Inhalte

Die Inhalte dieser Website wurden mit größtmöglicher Sorgfalt erstellt. Für die Richtigkeit, Vollständigkeit und Aktualität der Inhalte können wir jedoch keine Gewähr übernehmen. Als Diensteanbieter sind wir gemäß § 7 Abs. 1 TMG für eigene Inhalte auf diesen Seiten nach den allgemeinen Gesetzen verantwortlich. Nach §§ 8 bis 10 TMG sind wir als Diensteanbieter jedoch nicht verpflichtet, übermittelte oder gespeicherte fremde Informationen zu überwachen oder nach Umständen zu forschen, die auf eine rechtswidrige Tätigkeit hinweisen.

Haftung für Links

Unser Angebot enthält gegebenenfalls Links zu externen Websites Dritter, auf deren Inhalte wir keinen Einfluss haben. Deshalb können wir für diese fremden Inhalte auch keine Gewähr übernehmen. Für die Inhalte der verlinkten Seiten ist stets der jeweilige Anbieter oder Betreiber der Seiten verantwortlich.

Urheberrecht

Die durch die Seitenbetreiber erstellten Inhalte und Werke auf dieser Website unterliegen dem chinesischen und deutschen Urheberrecht. Die Vervielfältigung, Bearbeitung, Verbreitung und jede Art der Verwertung außerhalb der Grenzen des Urheberrechtes bedürfen der schriftlichen Zustimmung des jeweiligen Autors bzw. Erstellers.

Legal Information

Datenschutzerklärung

1. Verantwortlicher

Verantwortlich für die Datenverarbeitung auf dieser Website im Sinne der Datenschutz-Grundverordnung (DSGVO) ist:

Shandong Asahi Graphite New Material Technology Co., Ltd.
No. 1261 Chaofan Street, Linzi Town, Linyi County, Dezhou City, Shandong Province, China
vertreten durch Wu Yun Zi

Europäischer Ansprechpartner: JianHua Li
Telefon: +49 160 3061395
E-Mail: sales@asahicarbon.de

2. Allgemeine Hinweise

Wir nehmen den Schutz Ihrer personenbezogenen Daten sehr ernst. Personenbezogene Daten werden auf dieser Website nur im technisch notwendigen Umfang erhoben. In keinem Fall werden die erhobenen Daten verkauft oder aus anderen Gründen an Dritte weitergegeben.

3. Hosting

Diese Website wird über GitHub Pages (GitHub, Inc., 88 Colin P Kelly Jr St, San Francisco, CA 94107, USA) gehostet. Beim Aufruf der Website werden technische Zugriffsdaten (insbesondere IP-Adresse, Browsertyp, Datum und Uhrzeit, abgerufene Datei) verarbeitet. Rechtsgrundlage ist Art. 6 Abs. 1 lit. f DSGVO (berechtigtes Interesse am sicheren Betrieb der Website).

4. Kontaktaufnahme und Anfrageformular

Wenn Sie uns per Kontaktformular, E-Mail oder Telefon kontaktieren, werden Ihre Angaben (z. B. Name, Firma, E-Mail-Adresse, Land, Ihre Anfrage) zur Bearbeitung Ihrer Anfrage und für den Fall von Anschlussfragen gespeichert. Das Anfrageformular wird technisch über Web3Forms (Forms-API) abgewickelt; Ihre Eingaben werden ausschließlich zum Zweck der Zustellung an unsere Vertriebsadresse weitergeleitet.

Rechtsgrundlage der Verarbeitung ist Art. 6 Abs. 1 lit. b DSGVO (vorvertragliche Maßnahmen) bzw. Art. 6 Abs. 1 lit. f DSGVO (berechtigtes Interesse an der Beantwortung Ihrer Anfrage). Die Daten werden gelöscht, sobald sie für die Bearbeitung nicht mehr erforderlich sind und keine gesetzlichen Aufbewahrungspflichten entgegenstehen.

5. Cookies

Diese Website setzt keine Tracking- oder Marketing-Cookies ein. Technisch notwendige Daten werden ausschließlich zur Auslieferung der Seite und für Funktionen wie das Anfrageformular verwendet.

6. Ihre Rechte

Sie haben jederzeit das Recht auf unentgeltliche Auskunft über Ihre gespeicherten personenbezogenen Daten, deren Herkunft und Empfänger sowie den Zweck der Datenverarbeitung. Darüber hinaus steht Ihnen ein Recht auf Berichtigung, Sperrung, Löschung, Einschränkung der Verarbeitung und Datenübertragbarkeit zu. Eine erteilte Einwilligung können Sie jederzeit mit Wirkung für die Zukunft widerrufen.

7. Beschwerderecht

Sie haben das Recht, sich bei einer Datenschutz-Aufsichtsbehörde über die Verarbeitung Ihrer personenbezogenen Daten durch uns zu beschweren.

8. Aktualität und Änderung dieser Datenschutzerklärung

Diese Datenschutzerklärung ist aktuell gültig. Durch die Weiterentwicklung unserer Website oder aufgrund geänderter gesetzlicher Vorgaben kann eine Anpassung erforderlich werden. Die jeweils aktuelle Datenschutzerklärung kann jederzeit auf dieser Seite abgerufen werden.
